Review Gigabyte AMD Radeon HD 6870: Mengandalkan Model Reference

Platform Pengujian

• Prosesor : Intel Core i7 930 @4 GHz (200×20)
• Motherboard : Gigabyte X58A-UD3R
• Graphics card : Gigabyte GV-R687D5-1GD-B (AMD Radeon HD 6870); AMD Radeon HD 6850; AMD Radeon HD 5830; NVIDIA GTX 460 1GB; NVIDIA GTX 460 768 MB; NVIDIA GTS 450 OC
• Memory : 3×1GB Kingston KHX16000D3T1K3/3GX
• Harddisk : Western Digital Caviar Black 500 GB (32 MB Cache)
• Power Supply : Enermax Revolution 85+ 1050 Watt
• Heatsink : Gelid Tranquilo
• Monitor : Philips 221E
• Input : Genius (Keyboard dan Mouse)
• OS : Windows 7 Ultimate 32-bit
• Driver : Catalyst 10.10c; Forceware 260.89; Forceware 260.52

Hasil Pengujian

First-person Shooter

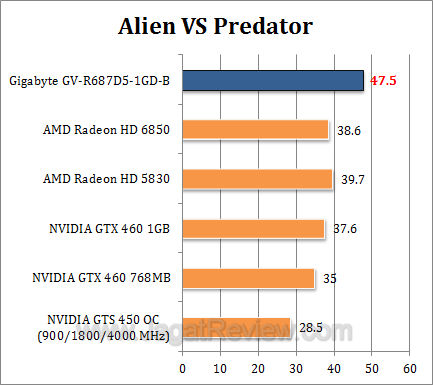

Alien VS Predator

Setting : 1920×1080; DirectX 11; Texture Quality – Very High; Shadow Quality – High; SSAO – On; AF x16; No-MSAA

LEFT4DEAD

Setting : 1920×1080; No-AA; AF-Trilinear; Maximum Quality

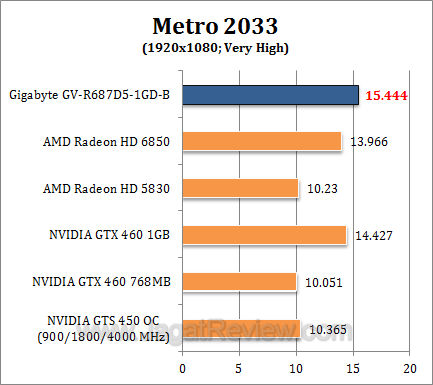

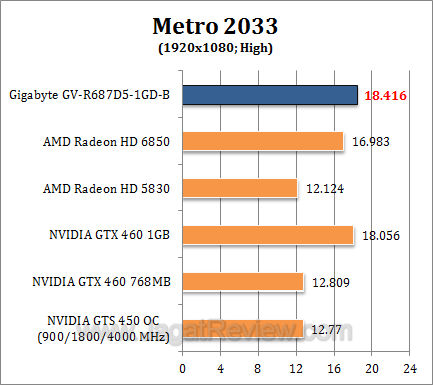

Metro 2033

Setting : DirectX 11; Advance DOF, No-Advance PhysX, MSAA x4, AF x16
