Review Digital Alliance HD 6870: Performa Barts XT dalam Kesederhanaan

Platform Pengujian

Prosesor: Intel Core i7 930 @4 GHz (200×20)

Motherboard: Gigabyte X58A-UD3R

Graphics Card: NVIDIA GTX 500 & GTX 400 Series; AMD Radeon HD 6000 Series

Memory: 3×2GB Kingston HyperX blu. (@1600 MHz; 1.64 V)

Storage: Kingston SSDNow V+ Series 64 GB & SSDNow V Series 30 GB (no-RAID)

Power Supply: Coolermaster Silent Pro Gold 800 Watt

Heatsink: Coolermaster Hyper 212 Plus

Monitor: Philips 221E

Input: Genius (Keyboard dan Mouse)

OS: Windows 7 Ultimate 64-bit

Driver: Forceware 266.58, 266.66, Catalyst 11.1a Hotfix

Hasil Pengujian

First-person Shooter Game

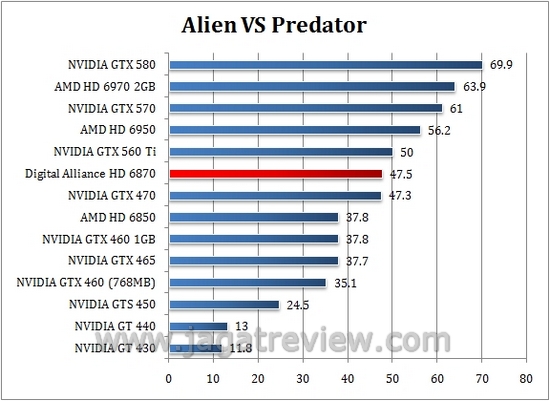

Alien VS Predator

Setting: 1920×1080; DirectX 11; Texture Quality-Very High; Shadow Quality-High; SSAO-On; AF x16; No-MSAA

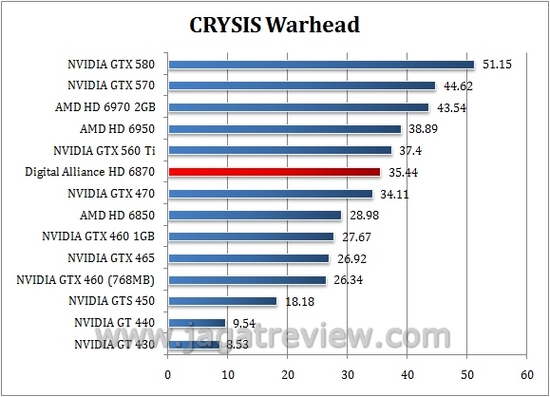

Crysis Warhead

Setting: 1920×1080; DirectX 10; Enthusiast Mode; No-AA

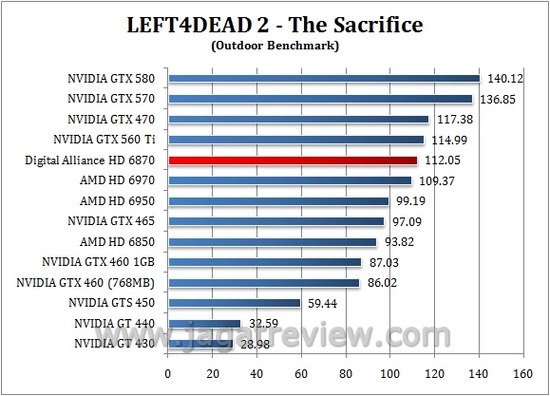

LEFT4DEAD 2

Setting: No-AA; AF-Trilinear; Maximum Quality

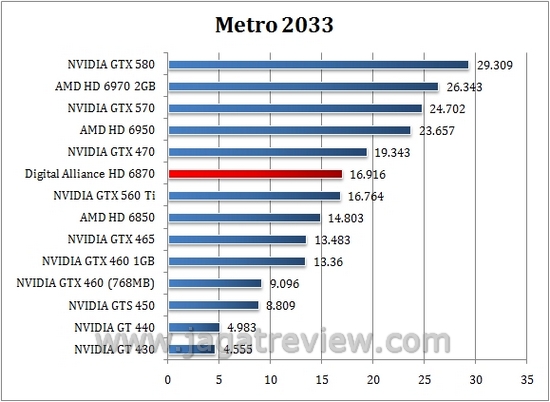

Metro 2033

Setting: 1920×1080; DirectX 11; Very High; Advance DOF; No-Advance PhysX; AF x16; MSAA x4
