Review Motherboard G1 Sniper: G1.Assassin Versi Murah

Author

Dimas Galih Windujati

Reading time:

Motherboard

May 30, 2011

readmode

Sudahkah Anda membaca artikel kami mengenai motherboard Gigabyte G1 Assassin? Ada baiknya jika Anda membaca artikel tersebut terlebih dahulu sebelum melanjutkan membaca artikel yang satu ini.

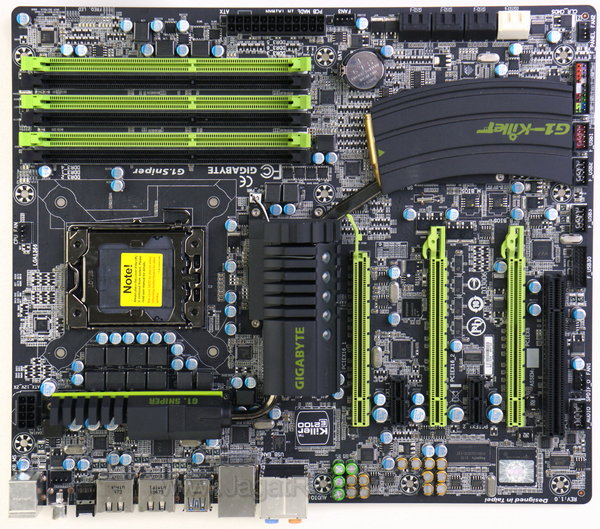

Mengapa? Karena pada dasarnya, motherboard yang baru saja datang ke meja pengujian tim Jagat Review ini merupakan versi “sunat” dari motherboard sebelumnya, yaitu G1 Assassins. Gigabyte menamakan motherboard ini dengan nama Gigabyte G1 Sniper, salah satu dari tiga motherboard yang termasuk dalam kelompok G1-Killer. Tema yang diusung juga masih sama, yaitu memiliki nuansa warna militer yang didominasi dengan warna hitam dan hijau.

Ada beberapa perbedaan yang mencolok antara Assassin dengan Sniper. Satu hal yang paling terlihat adalah ditiadakannya slot PCI-express x16 keempat yang membuat motherboard ini hanya mendukung multi-GPU sampai tiga buah (Triple SLI atau Crossfire). Selain itu, phase powernya juga diturunkan dari 16 ke 8 phase saja. Lalu, bagaimana spesifikasi lengkap serta kinerja dari motherboard ini? Baca artikel ini hingga akhir.

Spesifikasi

CPU	Intel^® Core™ i7 series LGA1366
QPI	4.8GT/s, 6.4GT/s
Chipset	North Bridge: Intel^® X58 Express Chipset South Bridge: Intel^® ICH10R
Memory	6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory 3/Dual channel memory architecture Support for DDR3 2200/1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Audio	1 x Creative CA20K2 chip Support for Dolby^® Digital Live and DTS™ Connect Support for X-Fi Xtreme Fidelity^® and EAX^® Advanced HD™ 5.0 technologies High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	1 x Bigfoot Killer E2100 chip (10/100/1000 Mbit)
Expansion Slots	2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 2 x PCI Express x1 slots 1 x PCI slot
Multi-Graphics Technology	Support for 2-Way/3-Way ATI CrossFireX™/NVIDIA SLI technology
Storage Interface	South Bridge: 6 x SATA 3Gb/s connectors (SATA2_0~SATA2_5) supporting up to 6 SATA 3Gb/s devices Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Marvell 88SE9182 chip: 2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices Support for SATA RAID 0 and RAID 1 JMicron JMB362 chip: 2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel, supporting up to 2 SATA 3Gb/s devices Support for SATA RAID 0, RAID 1, and JBOD
USB	South Bridge: Up to 12 USB 2.0/1.1 ports (6 on the back panel, including 2 eSATA/USB Combo, 6 via the USB brackets connected to the internal USB headers) 1 x Renesas D720200 chip and 2 x VLI VL810 hubs: Up to 4 USB 3.0/2.0 ports (2 on the back panel, 2 via the USB bracket connected to the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connecto 1 x 8-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 6 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 3 x fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 3 x USB 2.0/1.1 headers 1 x USB 3.0/2.0 header 1 x clearing CMOS jumper 1 x heatsink LED power connector
Back Panel Connectors	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x optical S/PDIF Out connector 1 x coaxial S/PDIF Out connector 1 x CPU overclocking button 4 x USB 2.0/1.1 ports 2 x USB 3.0/2.0 ports 2 x eSATA/USB Combo connectors 1 x RJ-45 port 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)
I/O Controller	iTE IT8720 chip
BIOS	2 x 16 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS ™ PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Form Factor	ATX Form Factor; 30.5cm x 26.4cm
