ASRock 890GX Pro3: Fitur Melimpah dengan Harga Terjangkau

Akhir-akhir ini banyak isu bertebaran mengenai prosesor terbaru AMD yaitu Bulldozer dan Llano yang akan segera diluncurkan akhir tahun ini. Di event Computex 2011, sudah mulai bermunculan motherboard-motherboard dengan chipset AMD terbaru yang akan mendukung prosesor tersebut. Walau begitu, bukan berarti motherboard dengan chipset lama tidak akan mendukung prosesor tersebut.

ASRock yang terus mengisi jajaran motherboard mereka dengan tipe-tipe terbaru meng-klaim motherboard terbaru mereka akan memiliki dukungan prosesor dengan socket AM3+ yang merupakan prosesor baru yang akan diluncurkan kemudian oleh AMD.  Salah satu motherboard tersebut adalah ASRock 890GX Pro3. Apa saja fitur baru yang disematkan di board ini?

Spesifikasi

CPU	– Support for Socket AM3+ processors – Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors – Supports 8-Core CPU – Supports UCC feature (Unlock CPU Core) – 4 + 1 Power Phase Design – Supports CPU up to 140W – Supports AMD’s Cool ‘n’ Quiet Technology – FSB 2600 MHz (5.2 GT/s) – Supports Untied Overclocking Technology – Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset	– Northbridge: AMD 890GX – Southbridge: AMD SB850
Memory	– Dual Channel DDR3 memory technology – 4 x DDR3 DIMM slots – Supports DDR3 2000(OC)/1866(OC)/1800(OC)/1600(OC)/1333/1066/800 non-ECC, un-buffered memory – Max. capacity of system memory: 32GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	– 32Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 1.1 Compliance Wake Up Events – Supports jumperfree – SMBIOS 2.3.1 Support – CPU, VCCM, NB, SB Voltage Multi-adjustment
Graphic	– Integrated AMD Radeon HD 4290 graphics – DX10.1 class iGPU, Shader Model 4.1 – Max. shared memory 512MB – Multi VGA Output options: D-Sub, DVI-D and HDMI – Supports HDMI Technology with max. resolution up to 1920×1200 (1080P) – Supports Dual-link DVI with max. resolution up to 2560×1600 @ 75Hz – Supports D-Sub with max. resolution up to 2048×1536 @ 85Hz – Supports HDCP function with DVI and HDMI ports – Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports
Audio	– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) – Premium Blu-ray audio support
LAN	– PCIE x1 Gigabit LAN 10/100/1000 Mb/s – Atheros® AR8151 – Supports Wake-On-LAN – Supports PXE
Slots	– 2 x PCI Express 2.0 x16 slots (PCIE2 @ x16 mode; PCIE3 @ x4 mode) – 1 x PCI Express 2.0 x1 slot – 3 x PCI slots – Supports ATI™ Quad CrossFireX™ , CrossFireX™ and Hybrid CrossFireX™
SATA3	– 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1 and RAID 5), NCQ, AHCI and “Hot Plug” functions
USB 3.0	– 2 x USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to 5Gb/s
Connector	– 5 x SATA3 6.0 Gb/s connectors – 1 x IR header – 1 x COM port header – 1 x IEEE 1394 header – 1 x HDMI_SPDIF header – 1 x Power LED header – CPU/Chassis/Power FAN connector – 24 pin ATX power connector – 8 pin 12V power connector – Front panel audio connector – 3 x USB 2.0 headers (support 6 USB 2.0 ports) – 1 x Dr. Debug (7-Segment Debug LED)
Rear Panel I/O	I/O Panel – 1 x PS/2 Keyboard Port – 1 x VGA/D-Sub Port – 1 x VGA/DVI-D Port – 1 x HDMI Port – 1 x Optical SPDIF Out Port – 4 x Ready-to-Use USB 2.0 Ports – 1 x eSATA3 Connector – 2 x Ready-to-Use USB 3.0 Ports – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – 1 x IEEE 1394 Port – 1 x Clear CMOS Switch with LED – HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Unique Feature	– ASRock Extreme Tuning Utility (AXTU) – Instant Boot – ASRock Instant Flash – ASRock AIWI – ASRock APP Charger – SmartView – ASRock XFast USB – Hybrid Booster: – CPU Frequency Stepless Control – ASRock U-COP – Boot Failure Guard (B.F.G.) – Turbo 25 / Turbo 30 GPU Overclocking – Turbo UCC
Smart Switch	– 1 x Power Switch with LED – 1 x Reset Switch with LED – 1 x Clear CMOS Switch with LED
Support CD	– Drivers, Utilities, AntiVirus Software (Trial Version), AMD OverDrive™ Utility, AMD Live! Explorer, AMD Fusion, ASRock Software Suite (CyberLink DVD Suite – OEM and Trial; Creative Sound Blaster X-Fi MB – Trial)
Accessories	– Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables (optional)
Hardware Monitor	– CPU Temperature Sensing – Chassis Temperature Sensing – CPU/Chassis/Power Fan Tachometer – CPU Quiet Fan – CPU/Chassis Fan Multi-Speed Control – Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor	– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – All Solid Capacitor design
OS	– Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certifications	– FCC, CE, WHQL – ErP/EuP Ready (ErP/EuP ready power supply is required)

Kemasan dan Paket Penjualan

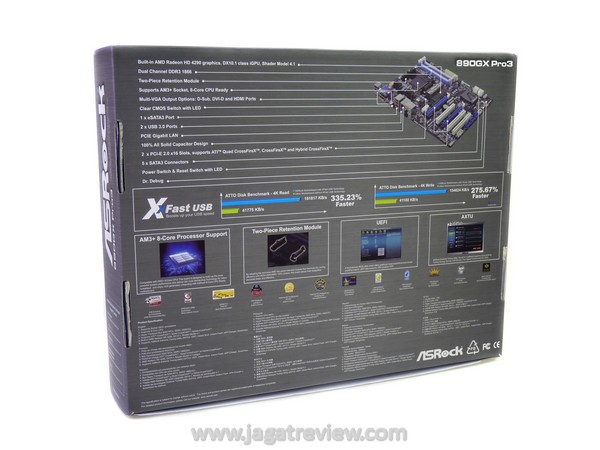

Kemasan yang digunakan ASRock kali ini cukup simpel, yaitu sebuah dus berwarna abu-abu seperti seri terbaru lainnya. Di dalamnya, Anda akan menemukan sebuah motherboard dengan aksesori pelengkap.

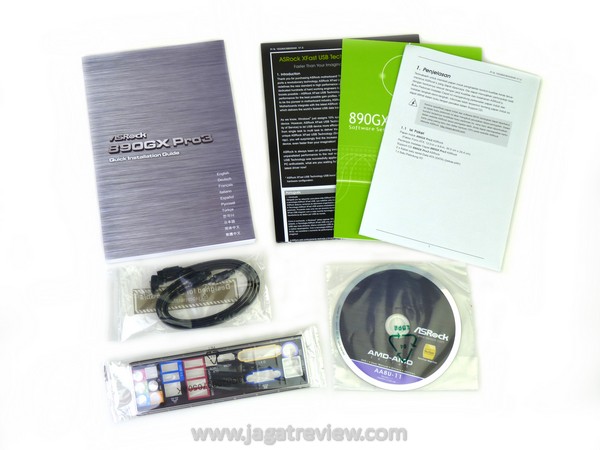

Di seri ini, aksesori pelengkap yang diberikan ASRock tergolong minim. Aksesori yang disertakan hanya berupa sepasang kabel SATA, I/O Shield, CD Driver, dan beberapa manual book.
