Review ASUS F1A75V-PRO: Motherboard A75 dengan BIOS Bersahabat

Sebagai salah satu produsen ternama, ASUS mencoba memberikan varian pilihan kepada pengguna Llano dengan menghadirkan produk kelas atasnya dalam wujud ASUS F1A75-V Pro. Produk ASUS kali ini menjanjikan motherboard yang penuh feature. Namun, apakah board ini mampu mengeluarkan semua potensi yang dimiliki Llano? Mari simak review berikut ini.

Sejak AMD hadir dengan prosesor (atau mungkin lebih tepat disebut APU) Llano, pengguna mendapatkan pilihan sistem dengan integrated graphic berkemampuan mumpuni. Tentunya diperlukan sebuah motherboard yang mampu memaksimalkan kemampuan processor ini. Para produsen motherboard berlomba-lomba menciptakan motherboard untuk “menemani” Llano. Tanpa motherboard yang tepat, kemampuan Llano takkan dapat dimanfaatkan secara maksimal.

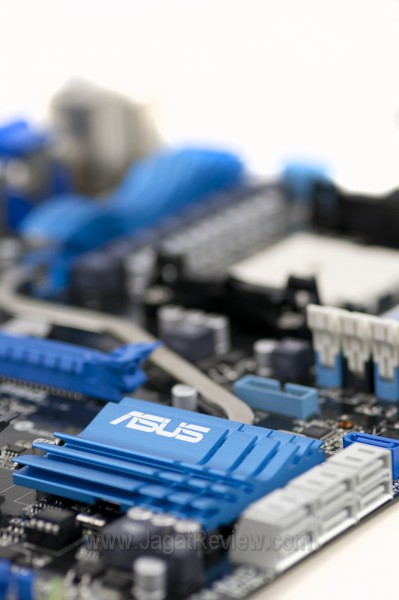

F1A75- V Pro mewakili ASUS sebagai produk kelas atas lini motherboard yang menggunakan chipset A75 yang ditujukan bagi Llano. Pertanyaan yang muncul adalah apakah motherboard ini mampu memanfaatkan semua potensi APU AMD ini? Inilah yang akan kita buktikan bersama melalui serangkaian pengujian di lab Jagat Review.

Spesifikasi

CPU	AMD Socket FM1 A- Series/E2- Series Accelerated Processors Supports CPU up to 4 cores Supports AMD® Turbo Core 2 Technology * The AMD® Turbo Core 2 Technology Support depends on the APU types
Chipset	AMD A75 FCH (Hudson D3)
Memory	4 x DIMM, Max. 64GB, DDR3 2250(O.C.)/1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
Graphic	Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports – Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz – Supports DVI with max. resolution 1920 x 1200 @ 60 Hz – Supports RGB with max. resolution 1920 x 1600 @ 60 Hz – Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz AMD® Dual Graphics technology support *1 Supports DirectX 11
Multi-GPU Support	Supports AMD CrossFireX™ Technology
Expansion Slots	2 x PCIe 2.0 x16 ( x16, x4) *2 2 x PCIe 2.0 x1 *2 3 x PCI
Storage	AMD A75 FCH (Hudson D3) chipset : 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 10, JBOD ASMedia® PCIe SATA controller : 1 x SATA 6Gb/s port(s), navy blue 1 x eSATA 6Gb/s port(s), red
LAN	Realtek® 8111E , 1 x Gigabit LAN Controller(s)
Audio	Realtek® ALC892 8-Channel High Definition Audio CODEC – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : – Optical S/PDIF out port(s) at back panel
USB Ports	AMD A75 FCH (Hudson D3) chipset : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board) AMD A75 FCH (Hudson D3) chipset : 10 x USB 2.0 port(s) (2 at back panel, black, 8 at mid-board) ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue)
Overclocking Features	Overclocking Protection : – ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS Dual Intelligent Processors 2 with DIGI+ VRM : ASUS TPU : – Auto Tuning – TurboV – TPU switch ASUS EPU : – EPU – EPU switch ASUS Digital Power Design : – Industry leading Digital 6 +2 Phase Power Design ASUS Exclusive Features : – MemOK! – AI Suite II – Ai Charger+ – Anti-Surge – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-pipe solution – ASUS Fan Xpert ASUS EZ DIY : – ASUS Q-Shield – ASUS CrashFree BIOS 3 – ASUS EZ Flash 2 – ASUS MyLogo 2 – Multi-language BIOS ASUS Q-Design : – ASUS Q-Slot – ASUS Q-Connector 100% All High-quality Conductive Polymer Capacitors
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x eSATA 6Gb/s 1 x LAN (RJ45) port(s) 4 x USB 3.0 2 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s)
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s) 1 x COM port(s) connector(s) 7 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (4 -pin) 1 x Power Fan connector(s) (3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es)
Accessories	User’s manual ASUS Q-Shield 2 x SATA 6Gb/s cable(s) 1 x Q-connector(s) (2 in 1) *3
BIOS	32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a
Support Disc	Drivers ASUS utilities ASUS Update Anti-virus software (OEM version)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note	*1: Refer to www.amd.com for the discrete GPUs which support Dual Graphics technology. *2: The PCIe x1_2 slot shares the bandwidth with the PCIe x16_2 slot. Due to the CrossFireX™ limitation, DO NOT use the PCIe x1_2 slot when you install two CrossFireX™ graphics cards on both the PCIe x16 slots to set up a CrossFireX™ configuration. *3: Retail version only.
