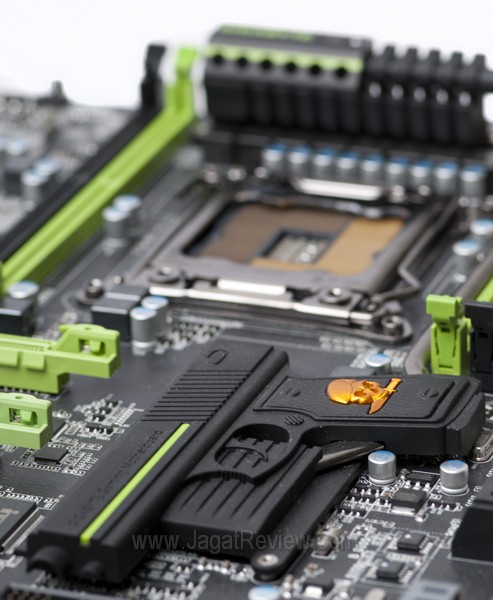

Review Gigabyte G1 Assassin 2: Motherboard Gaming X79 untuk Military Fan Boy

1. Support for Intel^® Core™ i7 processors in the LGA2011 package
2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

1. Intel^® X79 Express Chipset

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
   * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. 4 channel memory architecture
3. Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

1. 1 x Creative CA20K2 chip
2. Support for Dolby^® Digital Live and DTS™ Connect
3. Support for X-Fi Xtreme Fidelity^® and EAX^® Advanced HD™ 5.0 technologies
4. High Definition Audio
5. 2/4/5.1/7.1-channel
6. Support for S/PDIF Out

1. 1 x Bigfoot Killer E2100 chip (10/100/1000 Mbit)

1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
3. 2 x PCI Express x1 slots
   (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
4. 1 x PCI slot

1. Support for 3-Way/2-Way AMD CrossFireX™ / NVIDIA SLI technology.

1. 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
2. 4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

2 x Marvell 88SE9172 chips:

1. 2 x SATA 6Gb/s connectors (GSATA3 6/GSATA3 7) supporting up to 2 SATA 6Gb/s devices
2. 2 x eSATA 6Gb/s connectors (eSATA/USB Combo) on the back panel supporting up to 2 SATA 6Gb/s devices
3. Support for RAID 0 and RAID 1

1. Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, including 2 eSATA/USB Combo, 6 ports available through the internal USB headers)

2 x Fresco FL1009 chips:

1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 4 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 4 x fan headers
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 3 x USB 2.0/1.1 headers
11. 1 x USB 3.0/2.0 header
12. 1 x Clear CMOS jumper
13. 1 x Trusted Platform Module (TPM) header

1. 1 x PS/2 keyboard/mouse port
2. 1 x CPU overclocking button
3. 1 x BIOS switch button
4. 1 x Clear CMOS button
5. 1 x optical S/PDIF Out connector
6. 6 x USB 2.0/1.1 ports
7. 2 x USB 3.0/2.0 ports
8. 2 x eSATA/USB Combo connectors
9. 1 x RJ-45 port
10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)

1. iTE IT8728 chip

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
   * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

1. 2 x 64 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
   * Available functions in EasyTune may differ by motherboard model.
8. Support for Smart 6™
9. Support for eXtreme Hard Drive (X.H.D)
10. Support for ON/OFF Charge
11. Support for Cloud OC
12. Support for 3TB+ Unlock
13. Support for TouchBIOS
14. Support for Q-Share

1. Norton Internet Security (OEM version)

1. Support for Microsoft^® Windows 7/Vista/XP

1. E-ATX Form Factor; 30.5cm x 26.4cm
