Preview Casing Cooler Master HAF Stacker

Author

Richard Sutanto

Reading time:

Casing

December 5, 2013

readmode

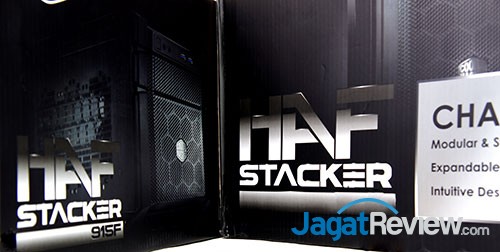

Cooler Master membuat sebuah inovasi yang memadukan dua buah jajaran produk casing mereka: HAF (High Air Flow) dan Stacker menjadi HAF Stacker. Casing ini merupakan sebuah produk yang merupakan perpaduan hal unik dari seri HAS dan Stacker, dimana fitur HAF yang memiliki fokus untuk memberikan airflow maksimal untuk sistem Anda dan Stacker yang memiliki fokus untuk memberikan expandability yang besar dikombinasikan ke dalam satu produk. Kami berkesempatan untuk mencoba casing dari Cooler Master yang satu ini!

Kali ini, kami kedatangan satu set lengkap HAF Stacker, HAF Stacker 935 yang disertai dengan 915R, dan HAF Stacker 915F yang datang terpisah. Mari simak preview HAF Stacker berikut ini.

Spesifikasi

HAF-935

Model	HAF-935-KWN1
Color	Black / Black
Materials	Bezel: Mesh/Polymer; Case body: Steel SGCC-t0.7
Dimensions	235 x 719 x 578 mm / 9.25 x 28.8 x 22.75 inch
Net Weight	15.6 kg / 34.5 lbs
M/B Type	EATX, ATX, microATX, Mini-ITX (915R)
5.25″ Drive Bays	3 + 1 (915R)
3.5″ Drive Bays	9 (3 x modular cage)
SSD Bays	9 (converted), 1 (MB tray) + 3 (915R)
I/O Panel	USB 3.0 x 2, USB x 2, Audio
Expansion Slots	8 + 1 and 2 (915R)
Cooling Support (varies by stacking setup)	Top: 120mm x 2

	Front: 120mm x 2 / 92mm x 1 (included)

	Rear: 140mm (included) / 120mm x 1

	Side: 120mm x 6, 140mm x 4 (915R)

	Radiators: 360mm x 2 / 280mm x 2 (Side)
	140mm / 120mm x 1 (Rear)
Power Supply Type	Standard ATX PS2 x 2

	Rear / Bottom Mounted
Maximum Compatibility	VGA card length: 354mm / 13.9 inch
	360mm / 14.17 inch

	CPU cooler height: 180mm / 7 inch
	80mm / 3.15 inch
Warranty	2 years

HAF 915R

Model	HAF-915R-KKN1
Color	Black / Black
Materials	Bezel: Mesh/Polymer; Case body: Steel SGCC-t0.7
Dimensions	228 x 248 x 578mm / 8.97 x 9.76 x 22.75 in.
Net Weight	5.5 kg / 12.12 lbs
M/B Type	Mini-ITX
5.25″ Drive Bays	1
3 (1 x modular cage)
SSD Bays	3 (converted)
I/O Panel	USB 3.0 x 2 (No reset button) / Audio
Expansion Slots	2
Cooling Support (varies by stacking setup)	Front: 92mm x 1 (included)

	Side: 6 x 120mm or 4 x 140mm

	Radiators: 360mm x 2 / 280mm x 2 (Side)
Power Supply Type	Standard ATX PSU

	Rear / Top Mounted
Maximum Compatibility	VGA card length: 360mm / 14.17 inch

	CPU cooler height: 80mm / 3.15 inch
Warranty	2 years

HAF 915F

Model	HAF-915F-KKN1
Color	Black / Black
Materials	Bezel: Mesh/Polymer; Case body: Steel SGCC-t0.7
Dimensions	228 x 248 x 578mm / 8.97 x 9.76 x 22.75 in.
Net Weight	5.1 kg / 10.8 lbs
M/B Type	Mini-ITX
5.25″ Drive Bays	1
3.5″ Drive Bays	3
SSD Bays	3
I/O Panel	USB 3.0 x 2 (No reset button) / Audio
Expansion Slots	2
Cooling Support (varies by stacking setup)	Rear: 120mm x 1 (included)

	Side: 6 x 120mm or 4 x 140mm

	Radiators: 360mm x 2 / 280mm x 2 (Side) / 120mm (Rear)
Power Supply Type	Standard ATX PSU

	Front / Bottom Mounted
Maximum Compatibility	VGA card length: 360mm / 14.17 inch

	CPU cooler height: 170mm / 6.7 inch
Warranty	2 years
