Review VGA Notebook: NVIDIA GeForce GTX 980 8 GB GDDR5
Arsitektur

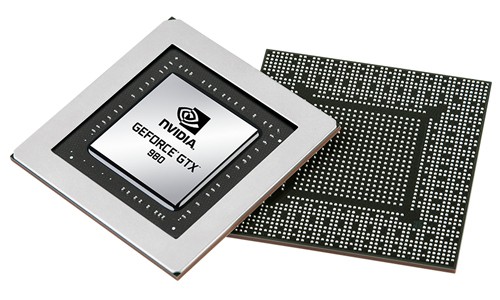

Membawa nama produk serupa satu sama lain, GeForce GTX 980 pada perangkat notebook/laptop memang mewariskan spesifikasi hardware sama seperti versi desktop. GeForce GTX 980 (Notebook) diotaki chip GPU GM204 dengan 16 unit SMM (Streaming Multiprocessor) aktif atau jika diterjemahkan di dalam gaphics card mobile tersebut terdapat 2048 CUDA Cores, 128 Texture Units, dan 64 ROP Units. GeForce GTX 980M sendiri juga ditenagai chip GPU GM204 tetapi telah mengalami pemangkasan spesifikasi sehingga hanya 12 unit SMM aktif. Berbasiskan arsitektur GPU Maxwell 2nd Generation, GM204 dibangun menggunakan 5,2 milyar transistor dengan menggunakan proses fabrikasi 28 nm.
Spesifikasi

| GeForce GTX 980M | GeForce GTX 980 (Notebook) | GeForce GTX 980 | |
| GPU Architecture | Maxwell | Maxwell | Maxwell |
| GPU Codename | GM204 | GM204 | GM204 |
| Fabrication Process | 28 nm | 28 nm | 28 nm |
| Transistor Count | 5,2 Billions | 5,2 Billions | 5,2 Billions |
| Die Size | 398 mm² | 398 mm² | 398 mm² |
| Streaming Multiprocessor | 12 SMM | 16 SMM | 16 SMM |
| CUDA Cores | 1536 | 2048 | 2048 |
| Texture Units | 128 | 128 | 128 |
| ROP Units | 32 | 64 | 64 |
| GPU Clock | 1038 MHz + Boost | Minimum 1064 MHz + Boost | 1127 MHz |
| Boost Clock | 1216 MHz | ||
| Memory Clock (Effective) | 5000 MHz (Effective) | 7012 MHz (Effective) | 7012 MHz (Effective) |
| Memory Size | Up to 8192 MB | Up to 8192 MB | 4096 MB |
| Memory Type | GDDR5 | GDDR5 | GDDR5 |
| Memory Bus | 256-bit | 256-bit | 256-bit |
| Bus Support | PCI Express 3.0 | PCI Express 3.0 | PCI Express 3.0 |
NVIDIA menetapkan base clock speed GPU GeForce GTX 980 (Notebook) pada nilai minimum 1064 MHz dan dapat naik lebih tinggi lagi berkat teknologi GPU Boost 2.0. Walaupun begitu, NVIDIA memberikan keleluasaan kepada produsen notebook/laptop dalam menentukan berapakah angka base clock speed GPU GeForce GTX 980 (Notebook). Pada Xenom Hercules HC17S, nilai base clock speed GPU GeForce GTX 980 (Notebook) berada pada angka 1190 MHz dengan nilai boost clock GPU mencapai 1228 MHz. Sementara itu untuk nilai clock speed memori dipatok pada angka 7012 MHz. GeForce GTX 980 (Notebook) dilengkapi chip memori tipe GDDR5 dengan kapasitas hingga mencapai 8 GB dan terhubung dengan chip GPU melalui memory bus 256-bit.
GeForce GTX 980 Features
- Microsoft DirectX 12 (Feature Level 12_1)
- NVIDIA GPU Boost 2.0
- NVIDIA Adaptive VSync
- NVIDIA 3DVision
- NVIDIA G-Sync
- NVIDIA PhysX
- NVIDIA CUDA
- NVIDIA TXAA
- NVIDIA FXAA
- NVIDIA Optimus
- NVIDIA SLI
- NVIDIA SHIELD-ready
- NVIDIA GameStream
- NVIDIA Gameworks
- NVIDIA ShadowPlay
- NVIDIA Battery Boost (Review)
