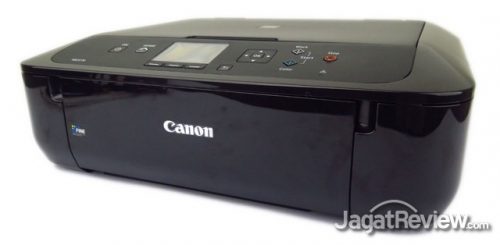

Review Printer Canon PIXMA MG5770
Di awal tahun, Canon telah memperkenalkan sekaligus meresmikan satu lagi printer All-In-One (AIO) terbaru mereka yaitu Canon PIXMA MG5770. Printer AIO ini sendiri dikenalkan sebagai printer yang mampu mencetak dokumen maupun foto tanpa masalah, dengan dilengkapi konektivitas Wireless untuk memudahkan penggunanya supaya tak perlu mengakses komputer lebih dulu untuk terhubung dengan si printer itu sendiri. Dan produk Canon PIXMA MG5770 ini kini telah hadir di kantor JagatReview.com untuk kami uji performanya. Simak dalam artikel review berikut ini!
Spesifikasi Teknis
| Maximum Printing Resolution | 4800 (horizontal) x 1200 (vertical) dpi | |
| Print Head / Ink | Type: | Individual Ink Cartridge |
| Number of Nozzles: | Total 4,096 nozzles | |
| Ink Droplet Size: | 2pl | |
| Ink Cartridge: | PGI-770 (Pigment Black), CLI-771 (Cyan, Magenta, Yellow, Black) [Optional: PGI-770XL (Pigment Black), CLI-771XL (Cyan, Magenta, Yellow, Black)] |
|
| Print Speed Based on ISO / IEC 24734 |
Document : Colour ESAT / Simplex: |
Approx. 9.0ipm |
| Document : B/W ESAT / Simplex: |
Approx. 12.6ipm | |
| Photo (4 x 6″): PP-201 / Borderless: |
Approx. 41secs. | |
| Printable Width | Bordered: | Up to 203.2mm (8-inch) |
| Borderless: | Up to 216mm (8.5-inch) | |
| Printable Area | Bordered Printing: | Top / Bottom / Right / Left margin: each 0mm (Supported Paper Size: A4 / Letter / 4 x 6″ / 5 x 7″ / 8 x 10″) |
| Bordered Printing: | Top margin: 3mm, Bottom margin: 5mm, Left / Right margin: each 3.4mm (Letter / Legal: Left: 6.4mm, Right: 6.3mm) |
|
| Bordered Auto 2-sided printing: | Top margin: 5mm, Bottom margin: 5mm, Left/Right margin: 3.4mm (Letter / Legal: Left: 6.4mm, Right: 6.3mm) |
|
| Recommended Printing Area | Top Margin: | 43.3mm |
| Bottom Margin: | 37.4mm | |
| Paper Size | A4, A5, B5, Letter, Legal, 4 x 6″, 5 x 7″, 8 x 10″, Envelopes (DL, COM10), Custom size (width 89 – 215.9mm, length 127 – 355.6mm) | |
| Paper Handling (Front Tray) (Maximum Number) |
Plain Paper | A4, A5, B5, Letter = 100, Legal = 10 |
| High Resolution Paper (HR-101N) | A4 = 65 | |
| Photo Paper Pro Platinum (PT-101) | 4 x 6″ = 20, A4 = 10 | |
| Photo Paper Plus Glossy II (PP-201) | 4 x 6″ = 20, A4 = 10 | |
| Photo Paper Pro Luster(LU-101) | A4 = 10 | |
| Photo Paper Plus Semi-Gloss (SG-201) | 4 x 6″ = 20, A4, 8 x 10″ = 10 | |
| Glossy Photo Paper “Everyday Use” (GP-601) | 4 x 6″ = 20, A4 = 10 | |
| Glossy Photo Paper “Everyday Use” (GP-508) | 4 x 6″ = 20, A4 = 10 | |
| Matte Photo Paper (MP-101) | 4 x 6″ = 20, A4 = 10 | |
| Envelope | European DL /US Com. #10 = 5 | |
| Support Media for Auto 2-sided printing | Type: | Plain Paper |
| Size: | A4, Letter | |
| Paper Weight | Front Tray: | Plain Paper: 64 – 105g/m2, Canon specialty paper: max paper weight: approx. 300g/m2 (Photo Paper Pro Platinum PT-101) |
| Ink End Sensor | Dot count | |
| Print Head Alignment | Manual | |
| Scan | ||
| Scanner Type | Flatbed | |
| Scanning Method | CIS (Contact Image Sensor) | |
| Optical Resolution | 1200 x 2400dpi | |
| Selectable Resolution | 25 – 19200dpi | |
| Scanning Bit Depth (Input / Output) | Grayscale: | 16 bits / 8 bits |
| Colour: | 48 bits / 24 bits (RGB each 16 bits / 8 bits ) | |
| Line Scanning Speed | Grayscale: | 1.2ms/line (300dpi) |
| Colour: | 3.5ms/line (300dpi) | |
| Scanning Speed | Reflective: A4 Colour / 300dpi |
Approx. 19secs. |
| Maximum Document Size | Flatbed: | A4 / LTR (216 x 297mm) |
| Copy | ||
| Maximum Document Size | A4 / Letter (216 x 297mm) | |
| Compatible Media | Size: | A4, A5, B5, Letter, 4 x 6″, 5 x 7″ |
| Type: | Plain Paper Photo Paper Pro Platinum (PT-101) Photo Paper Plus Glossy II (PP-201) Photo Paper Pro Luster (LU-101) Photo Paper Plus Semi-Gloss (SG-201) Glossy Photo Paper “Everyday Use” (GP-601) Glossy Photo Paper “Everyday Use” (GP-508) Matte Photo Paper (MP-101) |
|
| Image Quality | Draft, Standard, High | |
| Copy Speed | Document: Colour: sFCOT / Simplex: |
Approx. 20secs. |
| Document: Colour: sESAT / Simplex: |
Approx. 7.2ipm | |
| Multiple Copy | Black / Colour: | 99 pages |
| Network | ||
| Interface | Wireless LAN b/g/n, USB 2.0 Hi-Speed | |
| Protocol | TCP/IP | |
| Wireless LAN | Network Type: | IEEE802.11n / IEEE802.11g / IEEE802.11b |
| Frequency Band: | 2.4GHz | |
| Channel: | 1 – 13 | |
| Range: | Indoor 50m (depends on the transmission speed and conditions) | |
| Security: | WEP64 / 128bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES) | |
| Direct connection (Wireless LAN) | Available | |
| System Requirements | Windows: | Windows 8 / Windows 7 / Window Vista / Windows XP |
| Macintosh: | Mac OS X v10.7.5 and later | |
| General | ||
| Operation Panel | Display: | LCD (2.5inch / 6.2cm TFT colour) |
| Apple AirPrint | Available | |
| Mopria | Available | |
| Google Cloud Print | Available | |
| Canon Print Service Plug-In (on Android OS) |
Available | |
| PIXMA Cloud Link | From smartphone or tablet: | Available |
| From printer: | Available | |
| Canon PRINT Inkjet / SELPHY App (for iOS / Android OS) Canon Easy-PhotoPrint (for Windows RT OS) |
Available | |
| PictBridge | Wireless LAN: | Available |
| Operating Environment | Temperature: | 5 – 35°C |
| Humidity: | 10 – 90% RH (no dew condensation) |
|
| Recommended Environment | Temperature: | 15 – 30°C |
| Humidity: | 10 – 80% RH (no dew condensation) |
|
| Storage Environment | Temperature: | 0 – 40°C |
| Humidity: | 5 – 95% RH (no dew condensation) |
|
| Acoustic Noise (PC Print) | Photo (4 x 6″) | Approx. 43.0dB(A) |
| Power | AC 100 – 240V, 50 / 60Hz | |
| Power Consumption | OFF: | Approx. 0.2W |
| Standby (scanning lamp is off) (USB connection to PC): |
Approx. 0.7W | |
| Copying: (USB connection to PC) |
Approx. 12W | |
| Environment | Regulation: | RoHS (EU, China), WEEE (EU) |
| Eco-Label: | Energy Star, EPEAT | |
| Dimension (W x D x H) | Approx. 455 x 369 x 148mm | |
| Weight | Approx. 6.3kg | |
