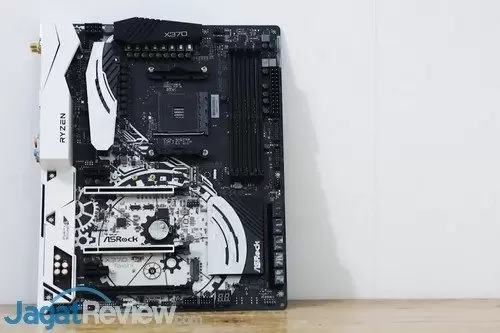

Video Review Motherboard ASRock X370 Taichi

• Unique Feature
  ASRock USB 3.1
  – ASRock USB 3.1 Type-A Port (10 Gb/s)
  – ASRock USB 3.1 Type-C Port (10 Gb/s)
  ASRock Super Alloy
  – XXL Aluminum Alloy Heatsink
  – Premium 60A Power Choke
  – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
  – Dual-Stack MOSFET (DSM)
  – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  – I/O Armor
  – Matte Black PCB
  – High Density Glass Fabric PCB
  – 2oz Copper PCB
  Intel^® 802.11ac WiFi
  ASRock Steel Slots
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  – Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge)
  – IR Digital PWM
  – 16 Power Phase design
  – Supports 300W EX OC
  – Supports ASRock Hyper BCLK Engine II
• Chipset
  – AMD Promontory X370
• Memory
  – Dual Channel DDR4 Memory Technology
  – 4 x DDR4 DIMM Slots
  – Supports DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC and non-ECC, un-buffered memory*
  – Max. capacity of system memory: 64GB**
  – 15μ Gold Contact in DIMM Slots

  *Please refer to Memory Support List on ASRock’s website for more information.

  Please refer to below table for DDR4 UDIMM maximum frequency support.

  Ryzen Series CPUs:

  UDIMM Memory Slot				Frequency(MHZ)
  A1	A2	B1	B2
  –	SR	–	–	2667
  –	DR	–	–	2667
  –	SR	–	SR	2667
  –	DR	–	DR	2400-2667
  SR	SR	SR	SR	2133-2400
  SR/DR	DR	SR/DR	DR	1866-2133

  SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
  DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS
  – 128Mb AMI UEFI Legal BIOS with GUI support
  – Supports “Plug and Play”
  – ACPI 5.1 compliance wake up events
  – Supports jumperfree
  – SMBIOS 2.3 support
  – CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
• Graphics
  – n/a
• Audio
  – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  – Premium Blu-ray Audio support
  – Supports Surge Protection
  – Supports Purity Sound™ 4
  – Nichicon Fine Gold Series Audio Caps
  – 120dB SNR DAC with Differential Amplifier
  – TI^® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  – Pure Power-In
  – Direct Drive Technology
  – PCB isolate shielding
  – Impedance Sensing on Line Out port
  – Individual PCB Layers for R/L Audio Channel
  – Gold Audio Jacks
  – 15μ Gold Audio Connector
  – Supports DTS Connect
• LAN
  – Gigabit LAN 10/100/1000 Mb/s
  – GigaLAN Intel^® I211AT
  – Supports Wake-On-LAN
  – Supports Lightning/ESD Protection
  – Supports Energy Efficient Ethernet 802.3az
  – Supports PXE
• Wireless LAN
  – Intel^® 802.11ac WiFi Module (Free Bundle)
  – Supports IEEE 802.11a/b/g/n/ac
  – Supports Dual-Band (2.4/5 GHz)
  – Supports high speed wireless connections up to 433Mbps
  – Supports Bluetooth 4.2 / 3.0 + High speed class II
• Slots
  – 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3))*
  – 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)**
  – 2 x PCI Express 2.0 x1 Slots
  – Supports AMD Quad CrossFireX™ and CrossFireX™
  – Supports NVIDIA^® Quad SLI™ and SLI™
  – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
  – 15μ Gold Contact in VGA PCIe Slot (PCIE2)

  *Supports NVMe SSD as boot disks

  **If PCIE5 slot is occupied, M2_2 will be disabled

• Storage
  – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  – 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
  – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
  – 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen2 x4 (20 Gb/s)*

  *If M2_2 is occupied, PCIE5 slot will be disabled
  Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit
• Connector
  – 1 x Power LED and Speaker Header
  – 1 x AMD Fan LED Header
  – 2 x RGB LED Headers*
  – 1 x CPU Fan Connector (4-pin)**
  – 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)****
  – 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
  – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  – 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
  – 1 x AMD LED Fan USB Header
  – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  – 2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection)
  – 1 x Dr. Debug with LED

  *Supports up to 12V/3A, 36W LED Strip
  **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
  ***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
  ****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
  *****CPU_FAN1, CHA_FAN1, CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  – 2 x Antenna Ports
  – 1 x PS/2 Mouse/Keyboard Port
  – 1 x Optical SPDIF Out Port
  – 1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection)
  – 1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection)
  – 6 x USB 3.0 Ports (Supports ESD Protection)
  – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  – 1 x Clear CMOS Switch
  – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
• Software and UEFI
  Software
  – ASRock A-Tuning
  – ASRock RGB LED
  – ASRock APP Charger
  – ASRock XFast LAN*
  UEFI
  – ASRock Full HD UEFI
  – ASRock Instant Flash
  – ASRock Internet Flash
  – ASRock Crashless BIOS
  – ASRock Easy RAID Installer

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  – Quick Installation Guide, Support CD, I/O Shield
  – 4 x SATA Data Cables
  – 1 x ASRock SLI_HB_Bridge_2S Card
  – 2 x ASRock WiFi 2.4/5 GHz Antennas
  – 2 x Screws for M.2 Sockets
• Hardware Monitor
  – Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  – Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  – Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
• Form Factor
  – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• OS
  – Microsoft^® Windows^® 10 64-bit*

  *For the updated Windows^® 10 driver, please visit ASRock’s website for details.
• Certifications
  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)

[/toggle]
[/toggles]

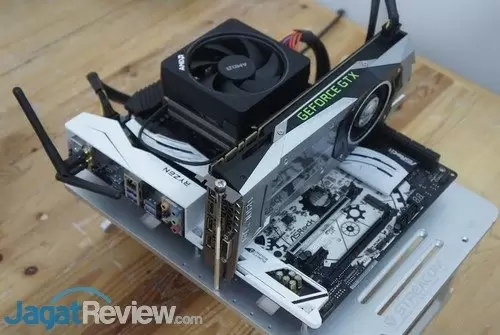

Platform Pengujian

Spesifikasi PC yang digunakan:

• Prosesor: AMD Ryzen 7 1700
• Motherboard: ASRock X370 Taichi
• RAM: Kingston DDR4-3466 2x 4 GB
• SSD NVMe: Samsung 950 Pro 240 GB
• PSU: Enermax Triathlor Eco 800W
• Benchtable: Streacom Open Benchtable
• HSF: AMD Wraith Max

Video Review

Berikut ini video review kami untuk motherboard tersebut:
