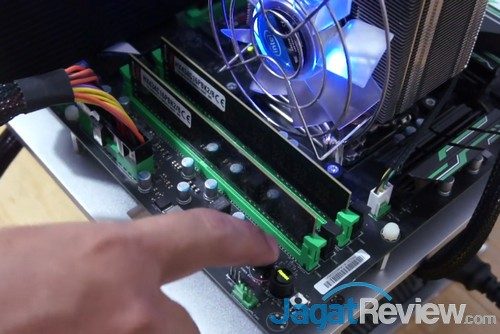

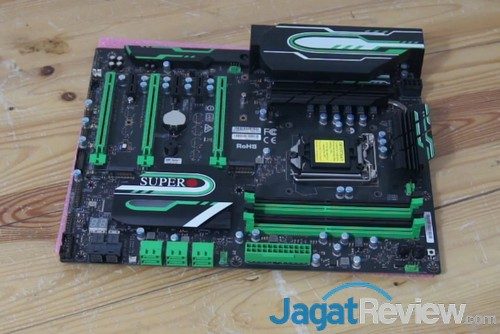

Selama ini, Supermicro lebih dikenal sebagai produsen motherboard untuk segmen server dan workstation. Namun, dalam beberapa tahun terakhir ini, mereka mencoba untuk turut terjun ke PC desktop melalui beberapa varian motherboard mereka. Kini, mereka lebih serius lagi menggarap segmen PC desktop, terutama untuk gaming, melalui sub-brand SuperO. Salah satu motherboard dari sub-brand itu pun datang menghampiri kami, yaitu C7Z270-CG. Hal apa saja yang ditawarkan SuperMicro di motherboard tersebut? Kami akan mengulasnya dalam video review ini!

Spesifikasi

Berikut ini spesifikasi dari motherboard SuperMicro SuperO C7Z270-CG sesuai yang ditampilkan SuperO di situs resmi mereka:

Product:
SKUC7Z270-CG-L
Form Factor:
ATX
Dimensions:
12″ x 9.6″, (30.5 cm x 24.4 cm)
CPU Core/Cache:
Intel® LGA 1151(H4) 7th/6th Gen Core i7/i5/i3/Pentium®/ Celeron®processors (up to 120W TDP)
Memory Capacity:
4x 288-pin DDR4 DIMM slots
Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
Memory Type:
Frequency up to DDR4 2400MHz DDR4 Non-ECC Un-buffered 288-pin (UDIMM) gold-plated DIMMs
Supports Intel® overclocking Extreme Memory Profile (XMP) DIMM (Up to 2800+MHz)
DIMM Sizes:
16GB, 8GB, 4GB
Memory Voltage:
1.2V
Chipset:
Intel® Z270 Express Chipset
On-Board SATA:
SATA3.0 (6Gbps) via Intel® Z270 Express Chipset, 6x SATA (RAID 0, 1, 5, 10)
On-Board Audio:
RealTek ALC1150 High Definition Audio
Network Controllers:
Intel® i219V Single Port Gigabit Ethernet, Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Input/Output:
- SATA: 6x SATA3 (6Gbps) ports
- LAN: 1x RJ45 Gigabit Ethernet LAN port
- USB:
  6x USB 3.0 ports (4 rear, 2 via headers)
  6x USB 2.0 ports (2 rear, 4 via headers)
  1x USB 3.1 Type A port (rear)
  1x USB 3.1 Type C port (rear)
- Audio: 7.1 HD Jacks
- Display:
  1x DVI-D
  1x HDMI 1.4b
  1 DP (DisplayPort) 1.2
  Support Triple display, Support 4K display devices
- Keyboard/Mouse: PS/2 connector for mouse and keyboard
- Serial Port/Header: 1x COM port (header)
Temperature:
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
PCI-Express:
2x PCIe 3.0 x16 slots (run at 16/NA or /8/8)
1x PCIe 3.0 x4 slots
3x PCIe 3.0 x1 slots
2x PCIe 3.0 x4 M.2 (2260/2280/22110)(M-key)
BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features:
DMI (SMBIOS) 2.7
ACPI 5.0
USB Keyboard Support
Software:
SuperDoctor® V
Watch Dog
Power Configurations:
ACPI Power Management
Keyboard Wakeup from Soft-Off
Power-on mode for AC power recovery
Voltage:
+12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN:
Total of 5 fan headers supporting up to 5 fans
5 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
LED:
Suspend static indicator LED
Other Features:
Chassis intrusion detection
Chassis intrusion header
RoHS
