Video Review Motherboard Supermicro X11SAE

Author

Yufianto Gunawan

Reading time:

Motherboard

June 16, 2017

readmode

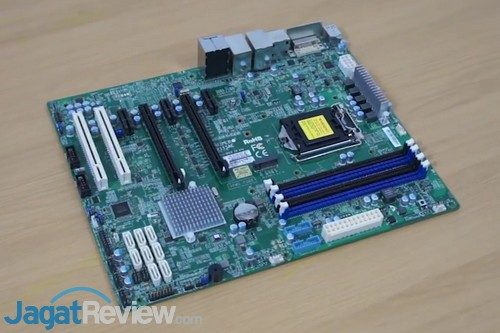

Sebuah motherboard dari Supermicro kembali hadir di lab. pengujian kami. Namun, berbeda dari motherboard sebelumnya yang hadir di bawah sub-brand SuperO, yang ditujukan untuk gamer, motherboard yang hadir kali ini ditujukan untuk segmen workstation, mendukung prosesor Intel Xeon E3 v5/v6. Motherboard Supermicro tersebut adalah X11SAE.

Karena diposisikan untuk sebuah workstation, X11SAE ini tidak dilengkapi dengan pernah-pernik yang mempercantik tampilannya. Supermicro bahkan menggunakan warna “klasik”, hijau, untuk motherboard yang satu ini. Namun, semua ini cukup wajar untuk sebuah produk untuk workstation. Apa saja yang ditawarkan Supermicro untuk motherboard ini?

Spesifikasi

Berikut ini informasi spesifikasi dari X11SAE sesuai yang ditampilkan Supermicro di situs resmi mereka:

Product SKUs

MBD-X11SAE	X11SAE


Physical Stats

Form Factor	ATX
Dimensions	12″ x 9.6″ (30.48cm x 24.38cm)


Processor/Cache

CPU	Intel® 6th/7th Generation Core™ i3 series, Intel® 6th/7th Generation Core™ i5 series, Intel® 6th/7th Generation Core™ i7 series, Intel® Xeon® Processor E3-1200 v6/v5 series. Socket H4 (LGA 1151) supported, CPU TDP support Up to 95W TDP
Note	BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ i3 Processors and Intel® Xeon® Processor E3-1200 v6 series


System Memory

Memory Capacity	Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset	Intel® C236
SATA	Intel® C236 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 + 1 PCIe M.2(PCIe x4, 2242/2260/2280)(No Raid Support)
Network Controllers	Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller
Audio	ALC 888S HD Audio


Input / Output

USB	8 USB 2.0 ports (2 rear + 6 via header(s)), 6 USB 3.0 ports (2 rear + 4 via header(s))2 USB 3.1 ports (2 Rear)
Video Output	1 DVI – D port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s)
Serial Port / Header	2 COM Ports (2 header(s))
TPM	1 TPM Header

Expansion Slots

PCI-E	2 PCI-E 3.0 x16, 3 PCI-E 3.0 x12 – 5V PCI 32bit *2 PCIe x16 slots are running at x16/NA or x8/x8 *


System BIOS

BIOS Type	AMI UEFI
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 3.0 UEFI 2.3.1 RTC (Real Time Clock) Wakeup


Management

Software	AMT, SuperDoctor® 5, vPro, Watchdog
Power Configurations	ACPI Power Management Keyboard Wakeup from Soft-Off CPU Fan auto-off in sleep mode Power-on mode for AC power recovery


PC Health Monitoring

Voltage	+12V, +3.3V, +5V, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN	5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication
Temperature	CPU thermal trip support I2C temperature sensing logic PECI Thermal Monitor 2 (TM2) support
LED	CPU / System Overheat LED Suspend static indicator LED UID/Remote UID
Other Features	8-pin 12v DC power connector, ATX Power connector, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Intel Smart Response Technology, WOL
