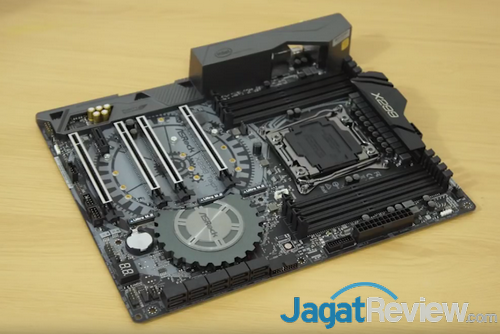

Sejak era chipset Intel X99, ASRock sudah menawarkan produk dari lini “Taichi” mereka, yang merupakan motherboard yang diposisikan untuk kelas atas, dengan corak warna gelap – terang. Lini motherboard itu terus berkembang, dengan hadirnya produk Taichi lain dengan chipset Intel Z270, AMD X370, AMD X399, serta Intel X299. Kali ini, salah satu produk “Taichi” tersebut kembali hadir ke lab. pengujian kami, dengan mengusung chipset Intel X299.

ASRock sebenarnya memiliki dua varian motherboard Taichi dengan chipset Intel X299, yaitu X299 Taichi dan X299 Taichi XE. Keduanya tentu saja mendukung Core i X Series yang baru saja dirilis oleh Intel, dengan sedikit perbedaan di kapabilitas regulasi daya, di mana X299 Taichi XE mampu mendukung prosesor Core i9 tertinggi saat ini, Core i9-7980XE. Namun, bukan motherboard itu yang akan kami bahas kali ini, melainkan varian yang satu lagi, X299 Taichi.

Spesifikasi

Berikut ini adalah spesifikasi dari motherboard ASRock X299 Taichi:

Unique Feature	ASRock USB 3.1 Gen2 – ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 65A Power Choke – Dr. MOS – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – I/O Armor – Matte Black PCB – High Density Glass Fabric PCB ASRock 802.11ac WiFi ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	– Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket – Digi Power design – 13 Power Phase design – Supports Intel® Turbo Boost Max Technology 3.0 – Supports ASRock Hyper BCLK Engine III
Chipset	– Intel® X299
Memory	– Quad Channel DDR4 Memory Technology – 8 x DDR4 DIMM Slots – Supports DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory – Supports non-ECC RDIMM (Registered DIMM) – Max. capacity of system memory: 128GB** – Supports Intel® Extreme Memory Profile (XMP) 2.0 – 15μ Gold Contact in DIMM Slots
BIOS	– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) – Supports Secure Backup UEFI Technology – ACPI 6.1 Compliant wake up events – SMBIOS 3.0 Support – CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD Voltage Multi-adjustment
Graphics	– n/a
Audio	– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – Supports Purity Sound™ 4 – Nichicon Fine Gold Series Audio Caps – 120dB SNR DAC with Differential Amplifier – TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) – Pure Power-In – Direct Drive Technology – PCB Isolate Shielding – Impedance Sensing on Front Out port – Individual PCB Layers for R/L Audio Channel – Gold Audio Jacks – 15μ Gold Audio Connector – Supports DTS Connect
LAN	– Gigabit LAN 10/100/1000 Mb/s – 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Dual LAN with Teaming* – Supports Energy Efficient Ethernet 802.3az – Supports PXE
Wireless LAN	– Intel® 802.11ac WiFi Module (Free Bundle) – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots	– 4 x PCI Express 3.0 x16 Slots* – 1 x PCI Express 2.0 x1 Slot – Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ – Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI™* – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) – 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)
Storage	– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug* – 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) – 2 x Ultra M.2 Sockets (M2_1 and M2_3), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Connector	– 1 x Virtual RAID On CPU Header – 1 x TPM Header – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 1 x CPU Fan Connector (4-pin) – 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 1 x Thunderbolt™ AIC Connector (5-pin)*** – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 Hub) (Supports ESD Protection) – 1 x Dr. Debug with LED
Rear Panel I/O	– 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x Optical SPDIF Out Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)* – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) – 1 x BIOS Flashback Switch – 1 x Clear CMOS Switch – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Software & UEFI	Software – ASRock A-Tuning – ASRock RGB LED – ASRock APP Charger – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash – ASRock Crashless BIOS – ASRock UEFI System Browser – ASRock UEFI Tech Service – ASRock Easy RAID Installer
Support CD	– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	– Quick Installation Guide, Support CD, I/O Shield – 4 x SATA Data Cables – 1 x ASRock SLI_HB_Bridge_2S Card – 1 x ASRock 3-Way SLI-2S1S Bridge Card – 2 x ASRock WiFi 2.4/5 GHz Antennas – 3 x Screws for Ultra M.2 Sockets
Hardware Monitor	– Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans – Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCSFR
Form Factor	– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 8 Layer PCB – 2oz Copper PCB
OS	– Microsoft® Windows® 10 64-bit
Certification	– FCC, CE, WHQL – ErP/EuP ready (ErP/EuP ready power supply is required)
