Video Review: Motherboard Gigabyte Z370 AORUS Ultra Gaming
Kemarin, kami telah membahas salah satu motherboard Intel Z370 yang telah dirilis oleh Gigabyte, salah satu vendor motherboard terkemuka dunia. Motherboard tersebut adalah Z370 AORUS Gaming 7, yang kami gunakan saat membuat artikel review prosesor Intel Core i7-8700K Coffee Lake. Namun, bukan hanya satu motherboard itu saja yang sempat kami coba, dari Gigabyte. Kami juga sempat mencoba motherboard lain, yaitu Z370 AORUS Ultra Gaming! Penasaran dengan motherboard tersebut?
Jajaran Motherboard Z370 dari Gigabyte
Beberapa hari sebelum Intel resmi merilis Core i Coffee Lake, Gigabyte sudah mengumumkan jajaran produk Intel Z370 mereka. Untuk gelombang pertama ini, Gigabyte telah mengumumkan tujuh motherboard Z370 mereka, yaitu Z370 AORUS Gaming 7, Z370 AORUS Gaming 5, Z370 AORUS Ultra Gaming, Z370 AORUS Gaming 3, Z370 AORUS Gaming K3, Z370XP-SLI, dan Z370 D3H. Kali ini, yang akan kami bahas adalah satu motherboard yang akan jadi andalan Gigabyte di Indonesia, Z370 AORUS Ultra Gaming!
[tabs class=”yourcustomclass”]
[tab title=”Z370 AORUS Gaming 7″ active=”active”]
[/tab]

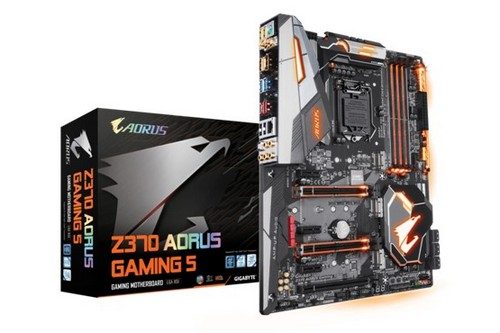

[tab title=”Z370 AORUS Gaming 5″]
[/tab]

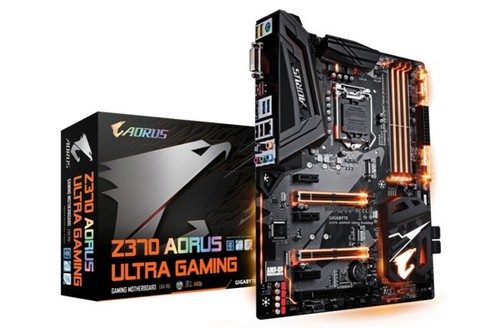

[tab title=”Z370 AORUS Ultra Gaming”]
[/tab]
[tab title=”Z370 AORUS Gaming 3″]
[/tab]
[tab title=”Z370 AORUS Gaming K3″]
[/tab]
[tab title=”Z370XP-SLI”]
[/tab]
[tab title=”Z370 D3H”]
[/tab]
[/tabs]

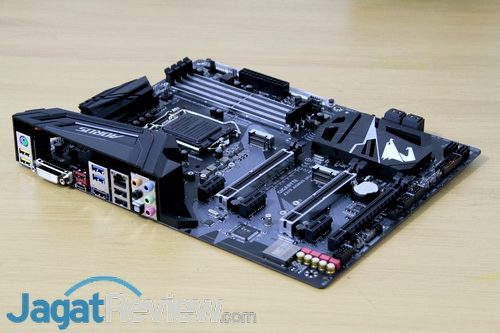

Gigabyte Z370 AORUS Ultra Gaming
Berikut ini adalah spesifikasi dari Z370 AORUS Ultra Gaming sesuai yang ditampilkan di situs resmi Gigabyte:
-
CPU
- Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
- L3 cache varies with CPU
-
Chipset
- Intel® Z370 Express Chipset
-
Memory
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
-
Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
- 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
- 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
-
Audio
- Realtek® ALC1220 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
-
LAN
- Intel® GbE LAN chip (10/100/1000 Mbit)
-
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 or PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode. - 3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
-
Storage InterfaceChipset:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_32G)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_32G)
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
-
Multi-Graphics Technology
- Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
- Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
-
USBChipset+ASMedia® USB 3.1 Gen 2 Controller:
- 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
- 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
- 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
- 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
-
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 2 x digital LED strip headers
- 2 x digital LED strip power select jumpers
- 2 x RGB (RGBW) LED strip headers
- 6 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Thunderbolt™ add-in card connector
- 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
- 1 x Clear CMOS jumper
-
Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
- 1 x USB 3.1 Gen 2 Type-A port (red)
- 4 x USB 3.1 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
-
I/O Controller
- iTE® Controller Chip
-
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
-
BIOS
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
-
Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
USB DAC-UP 2
V-Tuner - Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
-
Bundle Software
- Norton® Internet Security (OEM version)
- cFosSpeed
-
Operating System
- Support for Windows 10 64-bit
-
Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
Video Unboxing & Hands On Fitur
Beberapa hari lalu, kami telah merilis video terkait Intel Z370 perdana kami, yang tentu saja menampilkan motherboard Gigabyte Z370 AORUS Ultra Gaming ini. Video tersebut merupakan video unboxing dan hands on fitur untuk motherboard tersebut. Berikut ini adalah video yang kami maksud tersebut!
Penggunaan di Review Core i7-8600K
Sudahkah Anda membaca artikel Review Core i5-8600K “Coffee Lake” kami? Bila Anda sudah membacanya, Anda tentu sudah sempat melihat ulasan singkat kami untuk motherboard yang satu ini. Benar sekali, Z370 AORUS Ultra Gaming ini merupakan motherboard yang kami gunakan untuk mengerjakan review prosesor baru tersebut, tentu saja atas pinjaman dari Gigabyte dan distributor mereka, PT NJT. Sekali lagi, kami ingin mengcapkan terima kasih kepada kedua perusahaan tersebut atas pinjaman motherboard, dan juga unit Core i5-8600K, untuk review tersebut.
Video Hands On Performa Ekstra
Selain sempat menggunakan motherboard ini untuk review prosesor baru Intel tersebut, kami juga sempat mencoba melakukan pengujian khusus terhadap motherboard tersebut. Penasaran? Anda bisa melihatnya di bawah ini:
