Video: Unboxing & Hands-On Fitur ASRock X399 Taichi

ASRock, salah satu produsen motherboard ternama, turut menghadirkan produk mereka yang mendukung prosesor high-end desktop dari AMD, Ryzen Threadripper. Prosesor ini membutuhkan soket dan chipset yang berbeda dari Ryzen “biasa”, yaitu soket TR4 dan chipset AMD X399. Salah satu produk pendukung Ryzen Threadripper dari ASRock, X399 Taichi, beberapa waktu lalu hadir di lab. pengujian kami!

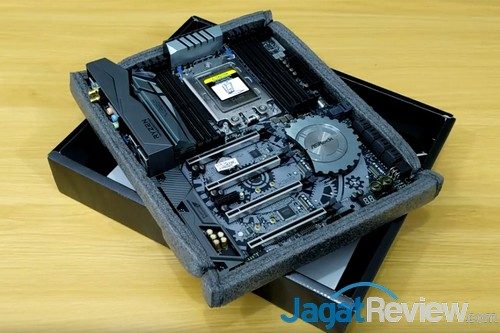

Seperti layaknya motherboard dari lini “Taichi” yang lain, ASRock menawarkan skema warna gelap – terang di motherboard ini, dengan kombinasi warna hitam dan abu-abu muda. Beberapa corak “gear” juga muncul di PCB motherboard ini, seperti yang juga kami temui di beberapa motherboard X399 Taichi lain. Penasaran seperti apa motherboard unggulan ASRock untuk mendukung Ryzen Threadripper tersebut?

Spesifikasi

Unique Feature	ASRock USB 3.1 Gen2 – ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 60A Power Choke – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) – IR3555M Dr. MOS 60A – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – I/O Armor – Matte Black PCB – High Density Glass Fabric PCB Intel® 802.11ac WiFi ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	– Supports AMD TR4 Socket Ryzen Threadripper Series CPUs – IR Digital PWM – 11 Power Phase design – Supports ASRock Hyper BCLK Engine III
Chipset	– AMD X399
Memory	– Quad Channel DDR4 Memory Technology – 8 x DDR4 DIMM Slots – Supports DDR4 3600+(OC)/3200(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory(U-DIMM) – Max. capacity of system memory: 128GB* – 15μ Gold Contact in DIMM Slots
BIOS	– 128Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
Graphics	– n/a
Audio	– 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – Supports Purity Sound™ 4 – Nichicon Fine Gold Series Audio Caps – 120dB SNR DAC with Differential Amplifier – TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) – Pure Power-In – Direct Drive Technology – PCB Isolate Shielding – Impedance Sensing on Front Out port – Individual PCB Layers for R/L Audio Channel – Gold Audio Jacks – 15μ Gold Audio Connector – Supports DTS Connect
LAN	– Gigabit LAN 10/100/1000 Mb/s – 2 x GigaLAN Intel® I211AT – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Dual LAN with Teaming* – Supports Energy Efficient Ethernet 802.3az – Supports PXE
Wireless LAN	– Intel® 802.11ac WiFi Module (Free Bundle) – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high speed wireless connections up to 433Mbps – Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots	– 4 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4) / x8 (PCIE5))* – 1 x PCI Express 2.0 x1 Slot – Supports AMD Quad CrossFireX™, 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ – Supports NVIDIA® Quad SLI™, 4-Way SLI™, 3-Way SLI™ and SLI™ – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) – 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)
Storage	– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug – 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* – 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* – 1 x U.2 Connector**
Connector	– 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 1 x CPU Fan Connector (4-pin)** – 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard) – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard) – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard) – 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector)***** – 1 x Right Angle Front Panel Audio Connector***** – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) – 1 x Clear CMOS Switch – 1 x Dr. Debug with LED – 1 x Power Switch with LED – 1 x Reset Switch with LED – 1 x CPU Xtreme OC Switch
Rear Panel I/O	– 2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x Optical SPDIF Out Port – 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) – 8 x USB 3.1 Gen1 Ports (Supports ESD Protection)* – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) – 1 x BIOS Flashback Switch – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Software & UEFI	Software – ASRock A-Tuning – ASRock RGB LED – ASRock APP Charger – ASRock XFast LAN UEFI – ASRock Full HD UEFI – ASRock Instant Flash – ASRock Internet Flash – ASRock Crashless BIOS – ASRock Easy RAID Installer
Support CD	– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories	– Quick Installation Guide, Support CD, I/O Shield – 4 x SATA Data Cables – 1 x ASRock 3-Way SLI™ Bridge Card – 1 x ASRock 4-Way SLI-S111 Bridge Card – 1 x ASRock SLI_HB_Bridge_3S Card – 2 x ASRock WiFi 2.4/5 GHz Antennas – 3 x Screws for M.2 Sockets
Hardware Monitor	– Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans – Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
Form Factor	– ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 8 Layer PCB – 2oz Copper PCB
OS	– Microsoft® Windows® 10 64-bit*
Certification	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)

Sayangnya, karena tidak ada prosesor Ryzen Threadripper yang tersedia di lab. pengujian kami, kami tidak bisa membahas terkait apa saja yang ditawarkan ASRock di motherboard ini dalam kaitannya dengan performa.

Video Unboxing & Hands-On Fitur
