Kabar baik bagi Anda para pecinta Intel yang hendak merakit PC dengan prosesor Alder Lake dan harga Motherboard terjangkau! Karena Intel baru saja merilis Motherboard dengan chipset B660 dan H610.

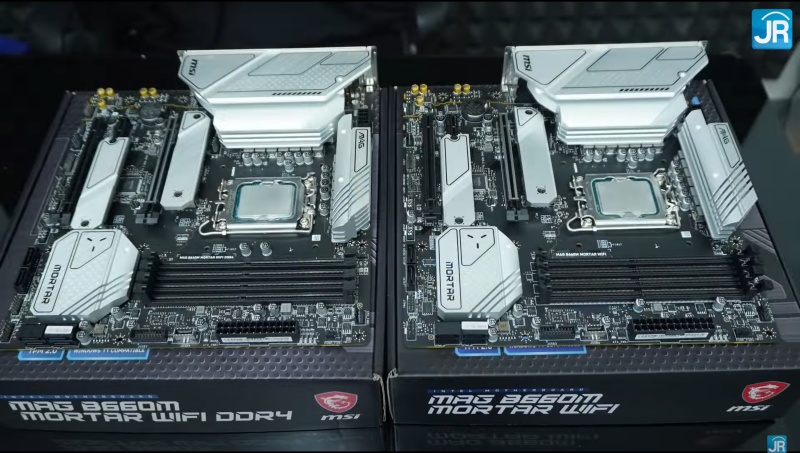

Motherboard Intel Alder Lake akan lebih terjangkau dengan dirilisnya chipset 600-series non-Z seperti B660. Berikut ini adalah ulasan B660 midrange dari MSI, B660M MORTAR WIFI, tersedia dalam opsi DDR5, maupun DDR4.

Spesifikasi

Form Factor: Micro-ATX
Dimensi: 24.4 cm x 24.4 cm
Processor:
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
- Processor socket LGA1700
Chipset: Intel® B660 Chipset
Memory:
- 4x DDR4 memory slots, support up to 128GB
  - Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
- Max overclocking frequency:
  - 1DPC 1R Max speed up to 4800+ MHz
  - 1DPC 2R Max speed up to 4000+ MHz
  - 2DPC 1R Max speed up to 4000+ MHz
  - 2DPC 2R Max speed up to 3600+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot:
- 2x PCIe x16 slots
  - PCI_E1 slot (From CPU)
    - Supports PCIe 4.0 x16
  - PCI_E3 slot (From B660 Chipset)
    - Supports PCIe 3.0 x4
- 1x PCIe 3.0 x1 slot
Multi-GPU: Supports 2-Way AMD® CrossFire™ Technology
Onboard Graphics:
- 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
- 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Storage:
- 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)
- 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
- 2x M.2 slots (Key M)
  - M2_1 slot (From CPU)
    - Supports PCIe 4.0 x4
    - Supports 2242/ 2260/ 2280 storage devices
  - M2_2 slot (From B660 Chipset)
    - Supports PCIe 4.0 x4
    - Supports SATA 6Gb/s
    - Supports 2242/ 2260/ 2280 storage devices
    - Supports Intel® Optane™ Memory
Raid: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB:
- Intel® B660 Chipset
  - 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel
  - 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector
  - 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
  - 4x USB 2.0 ports on the back panel
- USB Hub-GL3590
  - 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
- USB Hub-GL850G
  - 4x USB 2.0 ports available through internal connectors
Audio:
- Realtek® ALC1200 Codec
  - 7.1-Channel High Definition Audio
  - Supports S/PDIF output
LAN: 1x Realtek® 8125BG 2.5Gbps LAN controller
Wireless LAN & Bluetooth: Intel® Wi-Fi 6

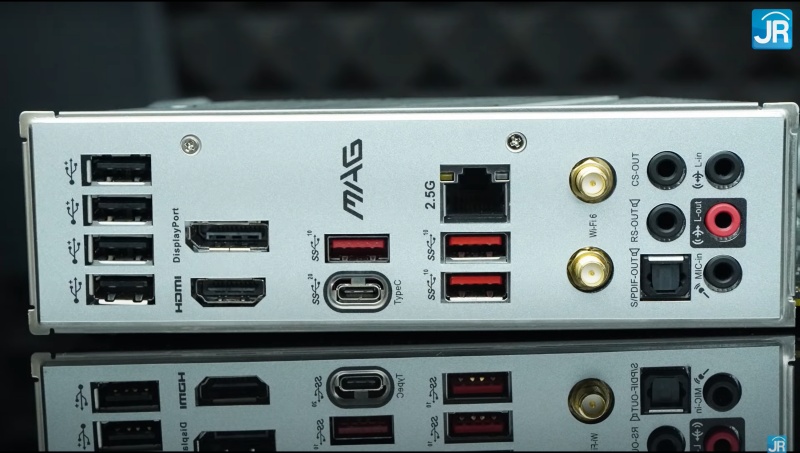

Backpanel Ports:
- USB 2.0 Port
- DisplayPort 1.4
- USB 3.2 Gen 2 10Gbps Type-A
- 2.5G LAN Port
- Wi-Fi / Bluetooth Antenna
- HD Audio Connectors
- HDMI 2.1 Port
- USB 3.2 Gen 2×2 20Gbps Type-C
- Optical S/PDIF OUT

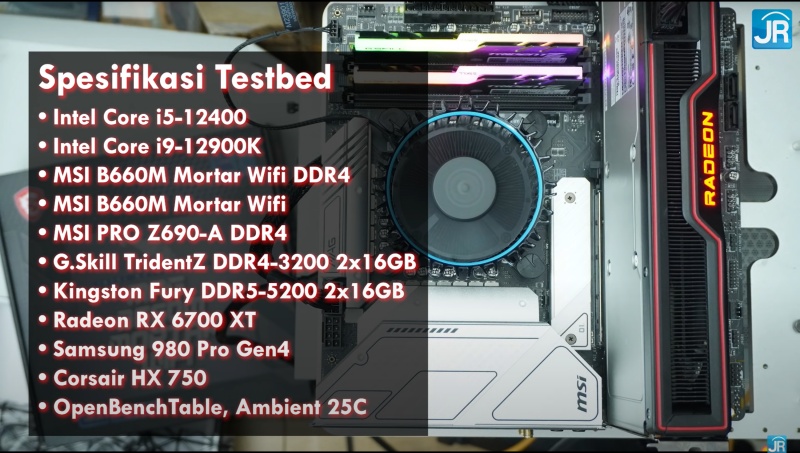

Sementara untuk pengujian kali ini, kami menggunakan spesifikasi Testbed sebagai berikut:

Untuk mengetahui lebih lanjut seperti apa Motherboard yang dibahas kali ini, simak selengkapnya dalam video yang dipandu oleh Alva Jonathan dari Jagat Review/Jagat Overclock:
