Review AMD Radeon HD 6870 CrossfireX: More Performance for Less

Test Platform

We used the following hardware combination in our test. Some adversaries were also included for comparison purposes.

• Prosesor : Intel Core i7 930 @4 GHz (200×20)
• Motherboard : Gigabyte X58A-UD3R
• Graphics card : AMD Radeon HD 6870; AMD Radeon HD 5970; NVIDIA GTX 480
• Memory : 3×1GB Kingston KHX16000D3T1K3/3GX
• Harddisk : Western Digital Caviar Black 500 GB (32 MB Cache)
• Power Supply : Enermax Revolution 85+ 1050 Watt
• Heatsink : Gelid Tranquilo
• Monitor : Philips 221E
• Input Devices : Genius (Keyboard and Mouse)
• OS : Windows 7 Ultimate 32-bit
• Driver : Catalyst 10.10c; Forceware 260.99

Test Results

First Person Shooter Games

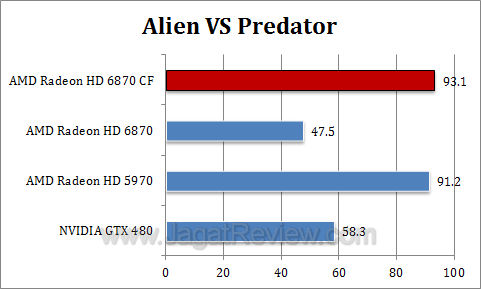

Alien VS Predator

Setting : 1920×1080; DirectX 11; Texture Quality-Very High; Shadow Quality-High; SSAO-On; AF x16; No-MSAA

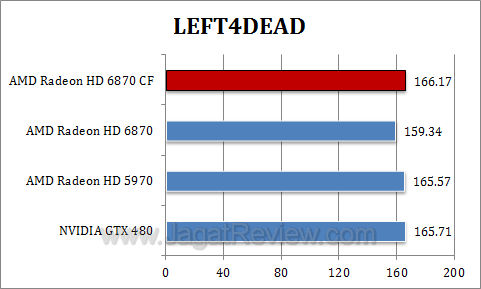

LEFT4DEAD

Setting : 1920×1080; No-AA; AF-Trilinear; Maximum Quality

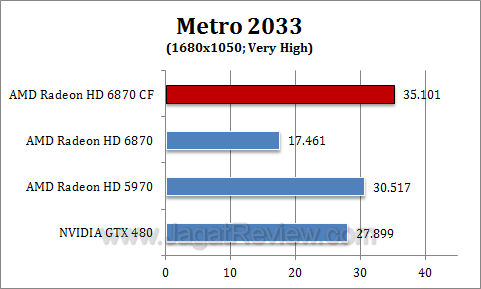

Metro 2033

Setting : DirectX 11; Advance DOF, No-Advance PhysX, MSAA x4, AF x16
