Overclocking NVIDIA GeForce GTX 560 Ti

Platform Pengujian

• Prosesor : Intel Core i7 930 @4 GHz (200×20)
• Motherboard : Gigabyte X58A-UD3R
• Graphics Card : NVIDIA GTX 500 & GTX 400 Series; AMD Radeon HD 6000 & HD 5000 Series
• Memory : 3×1GB Kingston KHX16000D3T1K3/3GX (@2000 MHz)
• Harddisk : Western Digital Caviar Black 500 GB (32 MB Cache)
• Power Supply : Coolermaster Silent Pro Gold 800 Watt
• Heatsink : Coolermaster Hyper 212 Plus
• Monitor : Philips 221E
• Input : Genius (Keyboard dan Mouse)
• OS : Windows 7 Ultimate 32-bit
• Driver : Forceware 266.58, 266.56(NVIDIA GTX 560 Ti), 260.99(NVIDIA GTX 580); Catalyst 10.11

Hasil Pengujian

First-person Shooter Game

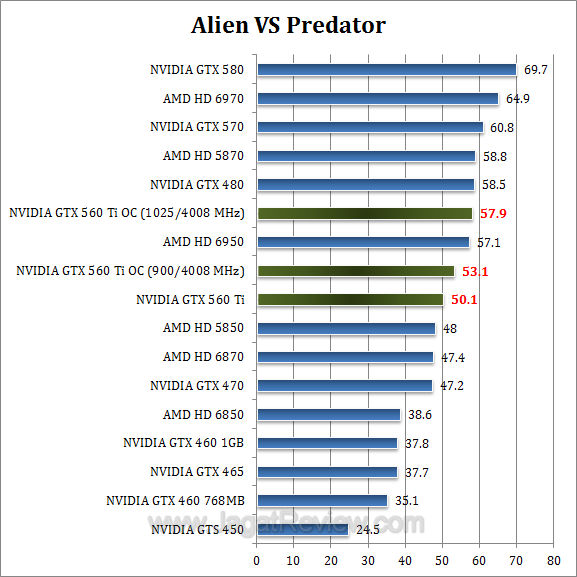

Alien VS Predator

Setting : 1920×1080; DirectX 11; Texture Quality-Very High; Shadow Quality-High; SSAO-On; AF x16; No-MSAA

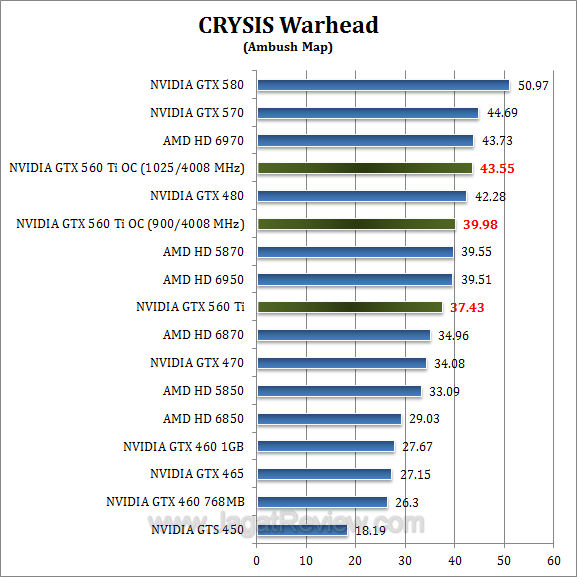

Crysis Warhead

Setting : 1920×1080; DirectX 10; Enthusiast Mode; No-AA

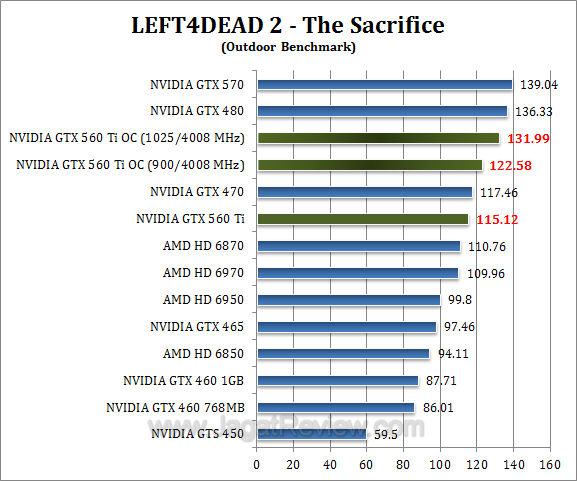

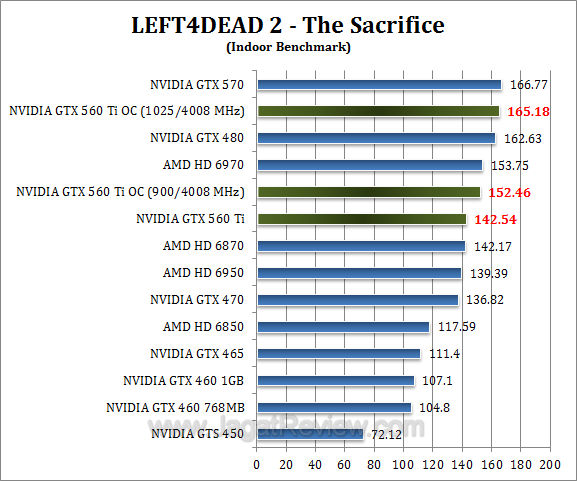

LEFT4DEAD 2

Setting : No-AA; AF-Trilinear; Maximum Quality

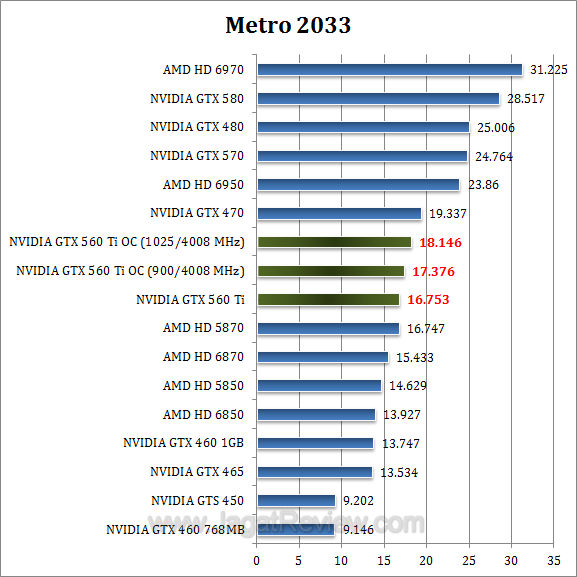

Metro 2033

Setting : 1920×1080; DirectX 11; Very High; Advance DOF; No-Advance PhysX; AF x16; MSAA x4
