Review ASUS F2A85-V Pro: Motherboard Trinity High End Dengan Segudang Fitur

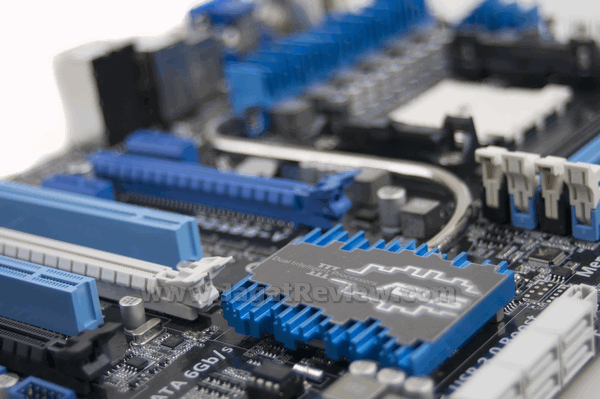

Kehadiran platform baru FM2 membuat para produsen motherboard berlomba-lomba mengeluarkan produk mereka. ASUS tentunya tak ingin ketinggalan untuk merilis motherboard yang mendukung platform tersebut. Salah satu produk motherboard FM2 andalan mereka kebetulan mampir lab JagatReview. Kami persembahkan ASUS F2A85-V Pro !
Terlihat skema penamaannya terlihat bahwa produk ASUS yang hadir ke lab kami mengusung chipset yang kasta tertinggi dalam line-up produk yang diperuntukkan untuk APU Trinity. Dengan menggunakan chipset A85X, tentunya fitur yang diusung oleh motherboard cenderung diperuntukkan bagi para pengguna advance dan power user yang mampu memanfaatkan fitur yang disediakan secara penuh.
Secara line-up, saat ini F2A85-V Pro merupakan produk dengan tingkat tertinggi yang dimiliki ASUS. Umumnya seri dengan sufix V-Pro cenderung mengutamakan fungsionalitas diatas fitur-fitur yang sekedar melengkapi paket penjualan sebuah motherboard. Umumnya V-Pro bukanlah seri yang teratas dalam sebuah line up motherboard, diatasnya masih terdapat seri Deluxe. Jika berkaca dari seri FM1, sepertinya V-Pro memang seri teratas yang akan dihadirkan ASUS. Wajar jika memperlakukan motherboard ini sebagai sebuah motherboard high-end.
Apakah yang membuat sebuah motherboard diklasifikasikan sebagai sebuah motherboard high-end? Apakah performanya atau paket penjualannya? Atau kedua-keduanya? Mari kita cermati bersama faktor-faktor ini dan sama-sama menilai apakah produk ini pantas menyandang tahta teratas line up motherboard dari ASUS.
Chipset A85X
Spesifikasi
| CPU | AMD Socket FM2 Athlon™/A- Series Processors Supports CPU up to 4 cores Supports AMD® Turbo Core 3.0 Technology |
| Chipset | AMD A85X FCH(Hudson D4) |
| Memory | 4 x DIMM, Max. 64GB, DDR3 1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Support AMD Memory Profile (AMP) memory * The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market. * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists). * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| Graphic | Integrated AMD Radeon™ HD 7000 Series Graphics in A-series APU Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports – Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz – Supports DVI with max. resolution 2560 x 1600 @ Hz – Supports RGB with max. resolution 1920 x 1600 @ 60 Hz – Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz Maximum shared memory of 2048 MB AMD® Dual Graphics technology support *1 Supports DirectX 11 |
| Multi-GPU Support | Supports AMD 3-Way CrossFireX™ Technology Supports LucidLogix® Virtu™ MVP Technology *2 |
| Expansion Slots | 2 x PCIe 2.0 x16 (x16 or dual x8) 1 x PCIe 2.0 x16 (x4 mode) 2 x PCIe 2.0 x1 2 x PCI |
| Storage | AMD A85X FCH(Hudson D4) chipset : 7 x SATA 6Gb/s port(s), gray 1 x eSATA 6Gb/s port(s), red Support Raid 0, 1, 5, 10, JBOD |
| LAN | Realtek® 8111F, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC892 8-Channel High Definition Audio CODEC – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : – Optical S/PDIF out port(s) at back panel |
| USB Ports | ASMedia® USB 3.0 controller : 2 x USB 3.0 port(s) (2 at back panel, blue) AMD A85X FCH(Hudson D4) chipset : 4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board) AMD A85X FCH(Hudson D4) chipset : 10 x USB 2.0 port(s) (2 at back panel, , 8 at mid-board) |
| Overclocking Features | Overclocking Protection : – ASUS C.P.R.(CPU Parameter Recall) |
| Special Features | ASUS Dual Intelligent Processors 3 with New DIGI+ Power Control : SMART DIGI+ : – Smart DIGI+ Key- Quickly delivers optimized VRM frequency, voltage and current for superior APU/DRAM overclocking performance with one click. ASUS TPU : – Auto Tuning – TurboV – GPU Boost – TPU switch ASUS EPU : – EPU – EPU switch ASUS Digital Power Design : – Industry leading Digital 6 +2 Phase Power Design – CPU Power Utility – DRAM Power Utility ASUS Exclusive Features : – Remote GO! – USB BIOS Flashback – MemOK! – AI Suite II – Ai Charger+ – USB Charger+ – Anti-Surge – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface – Network iControl – USB 3.0 Boost – Disk Unlocker ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-pipe solution – ASUS Fan Xpert 2 ASUS EZ DIY : – DirectKey – Precision Tweaker 2 – ASUS CrashFree BIOS 3 – ASUS EZ Flash 2 – ASUS MyLogo 2 ASUS Q-Design : – ASUS Q-Shield – ASUS Q-Slot – ASUS Q-Connector 100% All High-quality Conductive Polymer Capacitors |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x eSATA 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) |
| Internal I/O Ports | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s) 1 x COM port(s) connector(s) 7 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (4 x -pin) 4 x Chassis Fan connector(s) (4 x -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x DirectKey Button(s) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x USB BIOS Flashback button(s) |
| Accessories | User’s manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x Q-connector(s) (2 in 1) *3 |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Support Disc | Drivers, ASUS utilities, ASUS Update, Anti-virus software (OEM version) |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Platform Pengujian ASUS F2A85-V Pro
- Prosesor:AMD A10-5800K “Trinity”
- Motherboard: ASUS F2A85-V Pro
- Memory: 2 Keping dari KHX1600C9D3K4/16GX
- Hard Drive: Kingston HyperX SSD 120 GB
- Power Supply: Corsair Professional Series™ Gold AX850 — 80 PLUS® Gold Certified Fully-Modular Power Supply
- Cooling : Corsair Hydro Series™ H80 High Performance Liquid CPU Cooler
- Monitor: Monitor 21.5″ dengan resolusi 1920×1080
- Input Device : Genius (keyboard dan mouse)
- Media Penyimpan : DataTraveler HyperX 3.0 64 GB
- OS: Windows 7 Ultimate 64-bit SP1
