ASUS, produsen komponen komputer yang sudah terkenal dari Taiwan, baru-baru ini memperkenalkan jajaran motherboard terbaru mereka dengan chipset Z97. Chipset anggota keluarga Intel 9 Series terbaru tersebut siap dipasangkan dengan prosesor Intel LGA1150, termasuk Haswell Refresh yang akan segera hadir. Chipset Z97 sendiri mempunyai beberapa keunggulan dari Z87, seperti dukungan SATA Express.

Nah, baru-baru ini lab kami kedatangan salah satu motherboard Z97 terbaru dari produsen tersebut yaitu ASUS Z97-A. Motherboard kelas mainstream ini mempunyai segudang fitur. Dengan desain dan model baru, motherboard ini siap disandingkan dengan prosesor Intel terbaru. Penasaran dengan bentuk dari motherboard tersebut? Atau apa saja fitur yang dimiliki oleh motherboard tersebut? Yuk mari kita simak preview kami berikut ini.

Spesifikasi

Sebelum kita lebih jauh melihat motherboard tersebut, ada baiknya kita melihat spesifikasi dan fiturnya terlebih dahulu 😉

CPU	Intel® Socket 1150 for the 5^th/New 4^th/4^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® Z97
Memory	4 x DIMM, Max. 32GB, DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Graphic	Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz – Supports DisplayPort with max. resolution 4960 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz Maximum shared memory of 512 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Multi-GPU Support	Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots	2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 2.0 x16 (x2 mode) 2 x PCIe 2.0 x1 2 x PCI
Storage	Intel® Z97 chipset : 1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) 4 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology
LAN	Intel® I218V, 1 x Gigabit LAN, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
Audio	Realtek® ALC892 8-Channel High Definition Audio CODEC featuring Crystal Sound 2 – Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking Audio Feature : – Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound – DTS Ultra PC II – DTS Connect – Optical S/PDIF out port(s) at back panel – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Audio amplifier: Provides the highest-quality sound for headphone and speakers – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity – Unique de-pop circuit: Reduces start-up popping noise to audio outputs – Top notch audio sensation delivers according to the audio configuration – EMI protection cover to prevent electrical noise to affect the amplifier quality
USB Ports	Intel® Z97 chipset : 6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z97 chipset : 8 x USB 2.0/1.1 port(s) (2 at back panel, , 6 at mid-board)

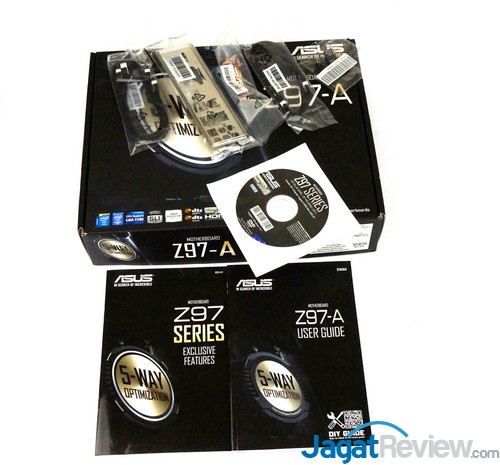

Accessories	User’s manual I/O Shield 3 x SATA 6Gb/s cable(s) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1) BIOS 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WfM 2.0, DMI 2.7, WOL by PME, PXE
Internal I/O Ports	1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x SATA Express connector: , compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 for M Key, type 2260/2280 devices 1 x TPM header 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 4 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x EZ XMP switch 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es) 1 x Power-on button(s) 1 x Clear CMOS jumper(s)
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s)
Form Factor	ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Special Features	5-Way Optimization by Dual Intelligent Processors 5 – Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. ASUS 5X Protection : – ASUS DIGI+ VRM – 8 Phase digital power design – ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention – ASUS ESD Guards – Enhanced ESD protection – ASUS High-Quality 5K-Hour Solid Capacitors – 2.5x long lifespan with excellent durability – ASUS Stainless Steel Back I/O – 3x more durable corrosion-resistant coating ASUS TPU : – Auto Tuning – GPU Boost – TPU switch ASUS EPU : – EPU – EPU switch ASUS Digital Power Design : – Industry leading Digital 8 Phase Power Design – CPU Power Utility ASUS Exclusive Features : – Remote GO! – AI Suite 3 – Anti-Surge – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface – USB 3.0 Boost – Disk Unlocker – Turbo LAN – Crystal Sound 2 ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-sink solution ASUS EZ DIY : – Precision Tweaker 2 – ASUS O.C. Tuner – ASUS CrashFree BIOS 3 – ASUS EZ Flash 2 – ASUS UEFI BIOS EZ Mode – Push Notice ASUS Q-Design : – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-Slot – ASUS Q-DIMM – ASUS Q-Connector Special Memory O.C. Design Overclocking Protection : – ASUS C.P.R.(CPU Parameter Recall) Media Streamer Turbo App Fan Xpert 3
Operating System Support	Windows® 8.1 Windows® 8 Windows® 7
