Platform Intel X99 yang baru saja rilis beberapa bulan terakhir ditujukan bagi pengguna enthusiast. Pemilik platform ini memiliki opsi untuk menggunakan prosesor Intel 8-core desktop pertama, Core i7-5960X, yang memiliki performa mengagumkan. Untuk pengguna prosesor yang sudah begitu kencang, pastinya akan menginginkan sebuah motherboard mewah yang memiliki berbagai pilihan ekspansi dan segudang fitur ekstra lainnya. Untuk itu, MSI merancang sebuah motherboard high-end bagi pengguna X99: MSI X99S XPOWER AC. Apakah motherboard ini bisa menunjukkan kelasnya sebagai salah satu produk flagship MSI? Mari simak bersama!

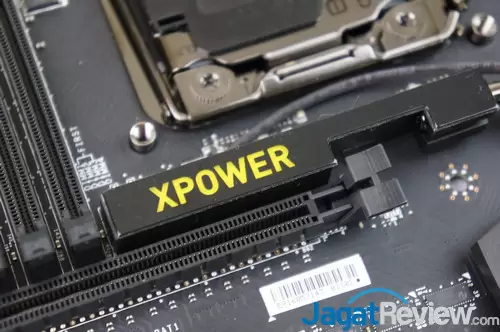

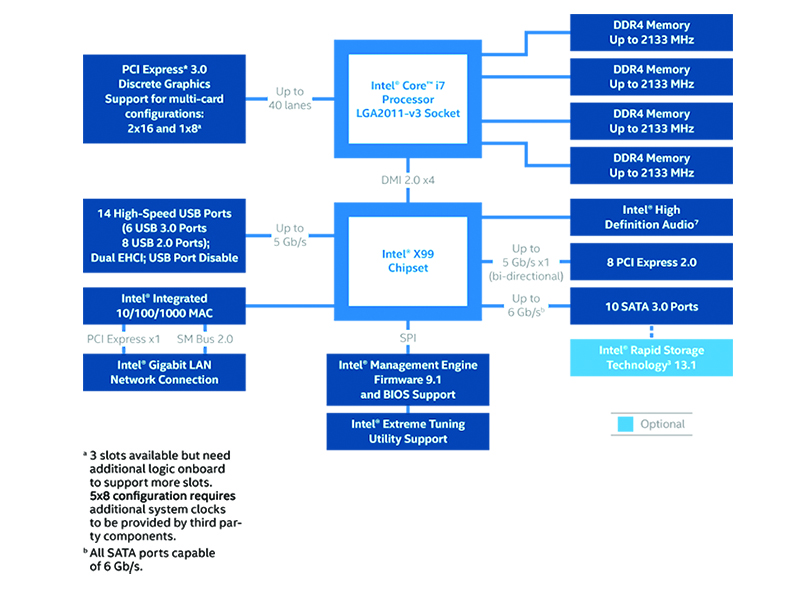

X99 Chipset Diagram

X99 chipset block diagram *klik untuk memperbesar*

Chipset Intel X99 merupakan chipset high-end yang ditujukan bagi prosesor Intel bersoket LGA2011v3. Seperti bisa dilihat di atas, platform X99 memiliki banyak sekali opsi ekspansi, mulai dari dukungan 40 PCIe lane 3.0 dari prosesor, Quad-channel DDR4, 10 SATA 6Gbps port, dan masih ada tambahan 8 Lane PCIe 2.0 untuk interkoneksi periferal tambahan.

Spesifikasi

Berikut ini spesifikasi dari MSI X99S XPOWER AC, sesuai dengan yang tertera di websitenya:

CPU
• Supports New Intel® Core™ i7 Processors Extreme Edition for LGA 2011-3 Socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
• Intel® X99 Express Chipset

Main Memory
• Support eight DDR4 DIMMs 2133/2200(OC)/2400(OC)/2600(OC)/2666(OC)/2750(OC)/3000(OC)/3110(OC)/3333(OC)DRAM (128GB Max)
– Supports Quad-Channel mode
– Supports non-ECC, un-buffered memory
– Supports Intel® Extreme Memory Profile (XMP)

Slots
• 5 x PCIe 3.0 x16 slots (PCI_E1~E4, PCI_E6), support up to 4-way mode
– 1-way mode: x16/ x0/ x0/ x0/ x0
– 2-way mode: x16/ x0/ x0/ x16/ x0*, x16/ x0/ x0/ x8/ x0**
– 3-way mode: x16/ x0/ x0/ x16/ x8*, x8/ x8/ x0/ x8/ x0**
– 4-way mode: x8/ x8/ x0/ x16/ x8*, x8/ x8/ x0/ x8/ x4**

• 1 x PCIe 2.0 x1 slot (PCI_E5)
* For the CPU that supports 40 PCIe lanes
** For the CPU that supports 28 PCIe lanes

Multi-GPU Support
• Supports 4-Way AMD® CrossFireTM Technology*
• Supports 4-Way NVIDIA® SLI™ Technology (For the CPU that supports 40 PCIe lanes)
• Supports 3-Way NVIDIA® SLI™ Technology (For the CPU that supports 28 PCIe lanes)
* Supports Windows 7 and Windows 8/ 8.1

Storage
• Intel X99 Express Chipset
•10x SATA 6Gb/s ports (2x ports reserved for SATA Express port)*
– SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10
– SATA7~10 ports only support IDE mode and AHCI mode.
– Supports Intel® Smart Response Technology (Windows 7/ 8/ 8.1)
• 1 x SATA Express port*
• 1 x M.2 port, supports M.2 SATA 6Gb/s module* or M.2 PCIe module up to 32Gb/s speed**
– M.2 port supports 4.2cm/ 6cm/ 8cm length module
– M.2 PCIe module does not support RAID 0, RAID1, RAID 5 and RAID 10.
* The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen2 x2 mode) module in the M.2 port.
** Intel RST does not support PCIe M.2 SSD with Legacy ROM.

USB
• Intel X99 Express Chipset
– 4 x USB 3.0 ports available through the internal USB connectors*

• 2 x ASMedia ASM1074 Chipset
– 8x USB 3.0 ports on the back panel

• ASMedia ASM1042 Chipset
– 2x USB 3.0 ports on the back panel
* Internal JUSB1 connector supports MSI Super Charger.

Audio
• Realtek® ALC1150 Codec
– 7.1-Channel High Definition Audio
– Supports S/PDIF output

LAN
• 1 x Intel I218-V Gigabit LAN – Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
• 1 x Intel I210-AT Gigabit LAN controller

Wireless LAN
• Wi-Fi/Bluetooth expansion module with Intel Dual Band Wireless-AC 7260 chip.
– Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.

Bluetooth
• Wi-Fi/Bluetooth expansion module with Intel Dual Band Wireless-AC 7260 chip.
– Supports Bluetooth v4.0 (includes BLE* and Bluetooth 3.0+HS)
* BLE: Bluetooth Low Energy

Internal I/O Connectors
– 1 x 24-pin AT x main power connector
– 1 x 8-pin AT x 12V power connector
– 1 x 4-pin AT x 12V power connector
– 1 x 4-pin flat AT x 12V power connector*
– 10 x SATA 6Gb/s connectors
– 3 x USB 2.0 connectors (supports additional 5 USB 2.0 ports)
– 2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports)
– 2 x 4-pin CPU fan connectors
– 5 x 4-pin system fan connectors
– 1 x Clear CMOS jumper
– 1 x Front panel audio connector
– 2 x System panel connectors
– 1 x TPM module connector
– 1 x Chassis Intrusion connector
– 9 x V-Check connectors
– 1 x GO2BIOS button
– 1 x Power button
– 1 x Reset button
– 2 x Base Clock control buttons
– 2 x CPU Ratio control buttons
– 1 x OC Genie button
– 1 x Discharge button
– 1 x Multi-BIOS switch
– 1 x OC Genie mode switch
– 1 x Slow mode switch
– 1 x Base Clock step swtich
– 1 x PCIe CeaseFire switch
– 1 x 2-Digit Debug Code LED
– 1 x Wi-Fi/Bluetooth module connector
* Provides additional power to PCIe x16 slots

Back Panel I/O Ports
– 1 x PS/2 port
– 2 x USB 2.0 ports
– 1 x Clear CMOS button
– 10 x USB 3.0 ports
– 1 x Optical S/PDIF OUT connector
– 2 x LAN (RJ45) ports
– 5 x OFC audio jacks

BIOS
• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension
• 12.0 in. x 10.7 in. (30.5 cm x 27.2 cm) E-ATX Form Factor

Mounting
• 9 mounting holes.

Berdasarkan spesifikasinya, terlihat bahwa board X99S XPOWER AC sangat padat komponen, memiliki berbagai pilihan slot ekspansi serta opsi konektivitas. Mari kita lihat motherboardnya lebih dekat, di halaman berikutnya!
