Review Motherboard: ASUS Z170I Pro Gaming

Author

Bhisma Sidarto

Reading time:

Highlights Motherboard

April 7, 2016

readmode

Kami di JagatReview.com punya sedikit ketertarikan khusus kepada motherboard MiniITX. Dengan segala keterbatasannya, sebuah sistem mengusung form factor ini memiliki daya tarik tersendiri. Bayangkan sebuah PC gaming yang cukup bertenaga dan cukup portabel untuk dibawa ke LanParty! Atau merakit sebuah sistem yang cukup mungil agar dapat digunakan sebagai HTPC. Banyak kemungkinan terbuka karena ukurannya yang mini. Performa motherboard berukuran mini seimbang dengan form factor yang lebih besar membuat ukuran mungil ini banyak di adopsi pengguna. Tidak heran jika produsen motherboard selalu menghadirkan form factor Mini-ITX dalam setiap lini baru yang hadir.

Kali ini kami kedatangan salah satu dari dua wakil ASUS dari kategori motherboard Z170 Mini-ITX. Z170I Pro Gaming adalah motherboard tersebut. Memang sedikit kalah pamor dari kakaknya Maximus VIII Impact, wakil dari seri Pro Gaming mencoba menyajikan alternatif pilihan dalam rentang harga yang lebih ekonomis. Walau tidak berada dalam seri yang sama (Maximus VIII Impact berada dalam seri ROG), banyak fitur ROG yang juga hadir dalam board ini. Lalu seperti apakah motherboard yang disebut sebagai saudara dari Maximus VIII Impact? Mari kita intip bersama!

Platform Pengujian

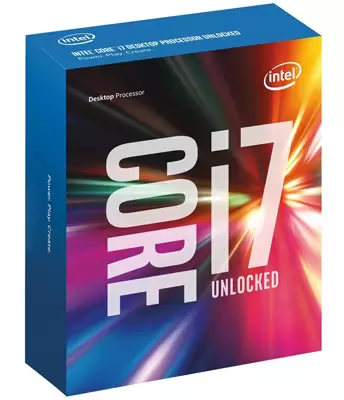

Prosesor: Intel Core i7-6700K

Memory: Kingston HyperX Fury 8GB DDR4 2666 MHz (Dual Channel)

Graphics Card: NVIDIA GeForce GTX 780 Ti

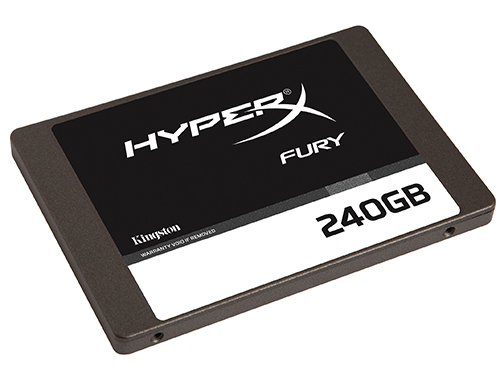

Storage: Kingston HyperX Fury 240 GB SSD

Power Supply: Corsair AX850

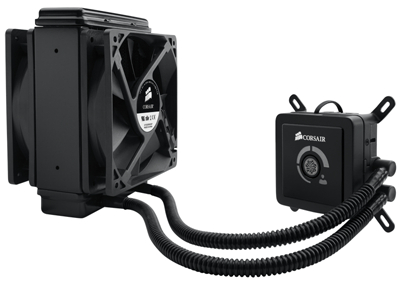

CPU Cooler: Corsair H80

Monitor: LCD Monitor 1920×1080

Input: Generic Keyboard and Mouse

OS: Windows 8.1 64-bit

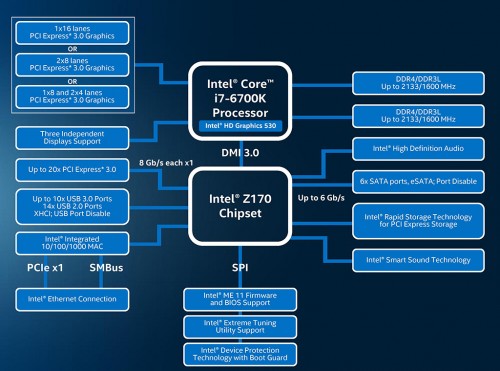

Intel Chipset Z170 Block Diagram

Intel Z170 adalah chipset unggulan untuk platform PC desktop kelas mainstream terbaru Intel. Motherboard dengan chipset tersebut mendukung prosesor Intel generasi keenam, Skylake, mulai dari prosesor Intel Skylake seri Pentium, Core i3, Core i5, hingga seri unggulannya, Core i7. Chipset ini juga mengalami sejumlah perkembangan dari segi fitur. Kini motherboard dengan Chipset Intel Z170 mengusung sejumlah fitur, seperti; 20 jalur PCI Express 3.0, dual channel memori DDR3L hingga 1600MHz/DDR4 hingga 2133MHz, 6 port SATA III 6Gbps, 10 port USB 3.0, 14 port USB 2.0, dan dukungan tuning untuk komponen prosesor dan juga memori.

CPU

Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Chipset

Intel® Z170

Memori

2 x DIMM, Max. 32GB, DDR4 3400(O.C.)/3333(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Grafis

Integrated Graphics Processor- Intel® HD Graphics support
Dukungan output Multi-VGA : HDMI/DisplayPort port
– Mendukung HDMI dengan resolusi maks. 4096 x 2160 @ 24 Hz
– Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Slot Ekspansi

1 x PCIe 3.0/2.0 x16

Storage

Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*¹
2 x SATA 6Gb/s port(s)
Supports Intel® Smart Response Technology*²

LAN

Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Anti-surge LANGuard

Audio

SupremeFX 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 115 dB SNR stereo playback output
Audio Feature :
– SupremeFX Shielding™ Technology
– Optical S/PDIF out port(s) at back panel
– Sonic Radar II

Port USB

ASMedia® USB 3.1 controller :
2 x USB 3.1 port(s) (Type-A)
Intel® Z170 chipset :
6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
Intel® Z170 chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, black, 2 at mid-board)

Fitur-Fitur Khusus

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
– 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 2+, and Turbo App
Gamer’s Guardian:
– ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
– DRAM Overcurrent Protection
– Stainless Steel Back I/O
– Highly Durable Components
– DIGI+ VRM
ASUS TPU :
– Auto Tuning
– TurboV
– GPU Boost
ASUS EPU :
– EPU
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger+
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– USB 3.1 Boost
– Disk Unlocker
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert 2+
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– Push Notice
ASUS Q-Design :
– ASUS Q-Shield
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-DIMM
– ASUS Q-Connector
Media Streamer
RAMCache

Operating System Support

Windows® 10 , 64bit
Windows® 8.1 , 64bit
Windows® 7 , 32bit/64bit

Port I/O Belakang

1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port
2 x USB 3.1 (red)Type-A
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
2 x Wi-Fi antenna port(s)

I/O Internal

1 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: gray, Compatible with 4 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector

Aksesori

User’s manual
ASUS Q-Shield
M.2 2242 mounting kit
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x 12 in 1 ROG Cable Label(s)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Kemampuan Manajemen

WfM 2.0, DMI 3.0, WOL by PME, PXE

Disc Pendukung

Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Form Factor
