Review Sapphire Radeon HD 6870 – Barts XT dari Tier-1 AMD

Platform Pengujian

Prosesor : Intel Core i7 930 @4 GHz (200×20)

Motherboard : Gigabyte X58A-UD3R

Graphics card : Sapphire HD 6870 1GB 256 bit DDR5; Others graphics card as compare

Memory : 3×1GB Kingston KHX16000D3T1K3/3GX

Harddisk : Western Digital Caviar Black 500 GB (32 MB Cache)

Power Supply : Cooler Master Silent Pro Gold 800 Watt

Heatsink : Cooler Master Hyper 212 Plus

Monitor : Philips 221E

Input : Genius (Keyboard dan Mouse)

OS : Windows 7 Ultimate 32-bit

Driver : Catalyst 10.11

Hasil Pengujian

Real Games Test

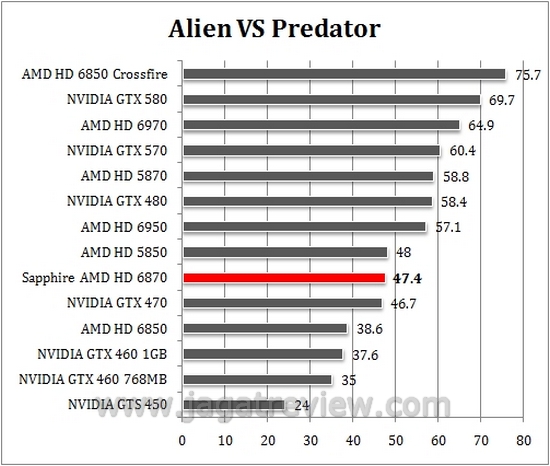

Alien VS Predator

Setting : 1920×1080; DirectX 11; Texture Quality-Very High; Shadow Quality-High; SSAO-On; AF x16; No-MSAA

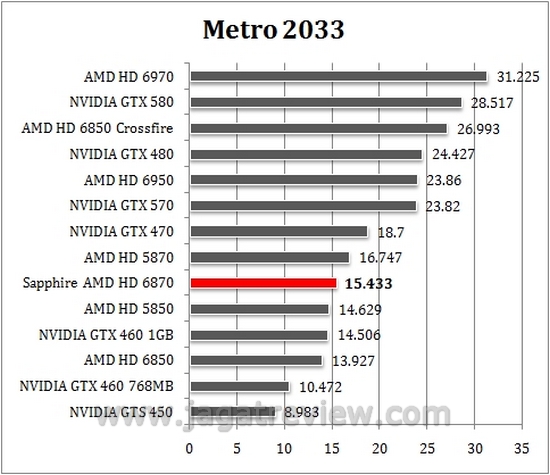

Metro 2033

Setting : DirectX 11; Advance DOF, No-Advance PhysX, MSAA x4, AF x16

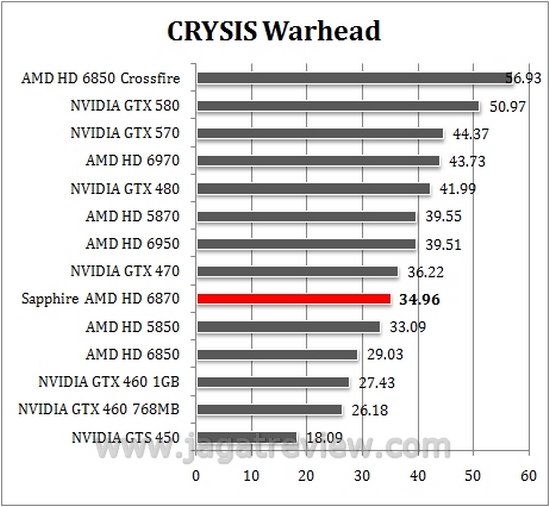

Crysis Warhead (Ambush)

Setting :  1920×1080; DirectX 10; Enthusiast

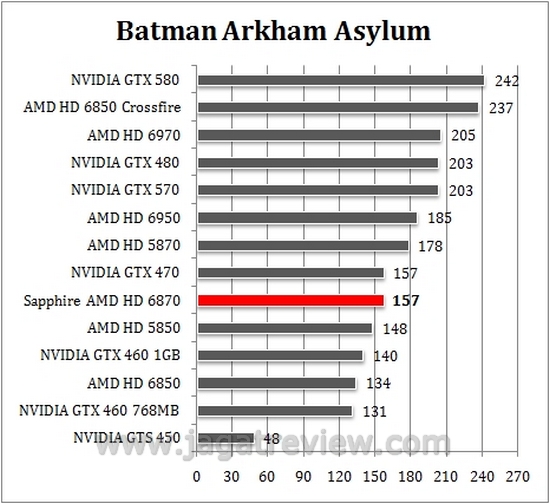

Batman Arkham Asylum

Setting : 1920×1080; No-AA; Maximum Quality; PhysX Off

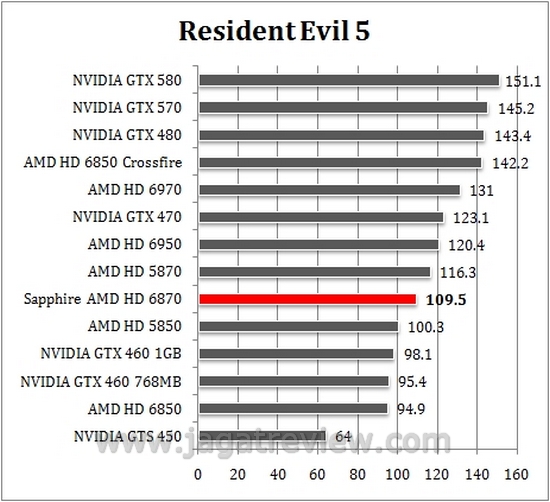

Resident Evil 5

Setting :  1920×1080; DirectX 10; Motion Blur-On; No-AA; High
