Review ASRock Z77 Extreme6: Platform Intel Ivy Bridge dengan Konektivitas Lengkap
Motherboard ASRock seri Extreme memang selalu menawarkan hal menarik. Salah satunya seperti yang pernah kami jumpai pada Z77 Extreme4 yang pernah kami review sebelumnya. Berada dikisaran harga 1,6 jutaan rupiah (saat tulisan ini diturunkan), motherboard ini mampu menawarkan feature lebih yang mungkin tidak ditemukan pada motherboard Intel Z77 lainnya dikisaran harga yang sama. Tidak hanya itu, motherboard ini pun tetap mampu menawarkan performa terbaiknya seperti motherboard Intel Z77 pada umumnya.

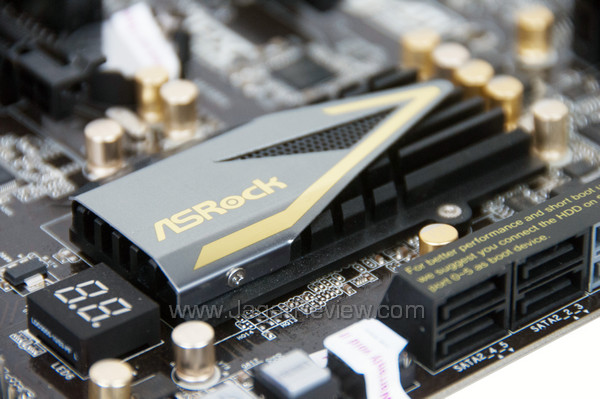

Chipset Intel Z77
Spesifikasi
| CPU | – Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 in LGA1155 Package – Digi Power Design – 8 + 4 Power Phase Design – Supports Intel® Turbo Boost 2.0 Technology – Supports Intel® K-Series unlocked CPU – Supports Hyper-Threading Technology |
| Chipset | – Intel® Z77 – Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU
*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.
|
| Memory | – Dual Channel DDR3 memory technology – 4 x DDR3 DIMM slots – Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory – Max. capacity of system memory: 32GB* – Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
|
| BIOS | – 64Mb AMI UEFI Legal BIOS with GUI support – Supports “Plug and Play” – ACPI 1.1 Compliance Wake Up Events – Supports jumperfree – SMBIOS 2.3.1 Support – CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment |
| Audio, Video and Networking | |
| Graphics | – Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU – Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU – Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU – Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU – Multi VGA Output options: D-Sub, DVI-D, HDMI and DisplayPort – Supports HDMI 1.4a Technology with max. resolution up to 1920×1200 @ 60Hz – Supports DVI with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 2048×1536 @ 75Hz – Supports DisplayPort with max. resolution up to 2560×1600 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) – Supports HDCP function with DVI, HDMI and DisplayPort ports – Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI, HDMI and DisplayPort ports
*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.
|
| Audio | – 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec) – Premium Blu-ray audio support – Supports THX TruStudio™ |
| LAN | – PCIE x1 Gigabit LAN 10/100/1000 Mb/s – Broadcom BCM57781 – Supports Wake-On-LAN – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Expansion / Connectivity | |
| Slots | – 2 x PCI Express 3.0 x16 slots (PCIE2/PCIE4: single at x16 (PCIE2) / x8 (PCIE4) or dual at x8/x8 mode) – 1 x PCI Express 2.0 x16 slot (PCIE5: x4 mode) – 1 x PCI Express 2.0 x1 slot – 1 x mini-PCI Express slot – 2 x PCI slots – Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™ – Supports NVIDIA® Quad SLI™ and SLI™
*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.
|
| Storage | – 2 x SATA3 6.0 Gb/s connectors by Intel® Z77, support RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and “Hot Plug” functions – 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and “Hot Plug” functions (SATA3_A2 connector is shared with eSATA3 port) |
| USB 3.0 | – 2 x Rear USB 3.0 ports by Intel® Z77, support USB 1.0/2.0/3.0 up to 5Gb/s – 2 x Rear USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0 up to 5Gb/s – 1 x Front USB 3.0 header by Intel® Z77 (supports 2 USB 3.0 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s |
| Connector | – 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions – 4 x SATA3 6.0 Gb/s connectors – 1 x Floppy connector – 1 x IR header – 1 x CIR header – 1 x COM port header – 1 x HDMI_SPDIF header – 1 x IEEE 1394 header – 1 x Power LED header – 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) – 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin) – 1 x Power Fan connector (3-pin) – 24 pin ATX power connector – 8 pin 12V power connector – SLI/XFire power connector – Front panel audio connector – 3 x USB 2.0 headers (support 6 USB 2.0 ports) – 1 x USB 3.0 header (supports 2 USB 3.0 ports) – 1 x Dr. Debug with LED – 1 x Power Switch with LED – 1 x Reset Switch with LED – 1 x Clear CMOS Switch with LED |
| Rear Panel I/O | I/O Panel – 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 1 x DisplayPort – 1 x Optical SPDIF Out Port – 2 x Ready-to-Use USB 2.0 Ports – 1 x eSATA3 Connector – 4 x Ready-to-Use USB 3.0 Ports – 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) – 1 x IEEE 1394 Port – 1 x Clear CMOS Switch with LED – HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Unique Feature | – ASRock Extreme Tuning Utility (AXTU) – ASRock Instant Boot – ASRock Instant Flash – ASRock APP Charger – ASRock XFast USB – ASRock XFast LAN – ASRock XFast RAM – ASRock Crashless BIOS – ASRock OMG (Online Management Guard) – ASRock Internet Flash – ASRock Dehumidifier Function – ASRock No-K OC Technology – Lucid Virtu Universal MVP – Hybrid Booster: – CPU Frequency Stepless Control – ASRock U-COP – Boot Failure Guard (B.F.G.) – Combo Cooler Option (C.C.O.) – Good Night LED
*Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated.**LucidLogix Virtu MVP only supports Windows® 7 OS or later versions.
|
| Support CD | – Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite – OEM |
| Accessories | – 1 x ASRock SLI_Bridge_2S Card – Quick Installation Guide, Support CD, I/O Shield – 4 x SATA Data Cables – 1 x Front USB 3.0 Panel – 4 x HDD Screws – 6 x Chassis Screws – 1 x Rear USB 3.0 Bracket |
| Hardware Monitor | – CPU Temperature Sensing – Chassis Temperature Sensing – CPU/Chassis/Power Fan Tachometer – CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) – CPU/Chassis Fan Multi-Speed Control – Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor | – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – Premium Gold Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) |
Platform Pengujian ASRock Z77 Extreme6
- Prosesor: Intel Core i7 3770K
- Motherboard: ASRock Z77 Extreme6
- Graphics Card: NVIDIA GTX 560 Ti
- Memory: 8 GB of KHX1600C9D3K4/16GX
- Storage: Kingston HyperX SSD 120GB
- Flash Drive: Kingston DataTraveler HyperX 3.0
- Power Supply: Corsair AX850
- CPU Heatsink: Corsair H80
- Monitor: LCD Monitor 1920×1080
- Input: Generic Keyboard and Mouse
- OS: Windows 7 Ultimate 64-bit SP1
