Review MSI Z87 MPOWER MAX: OC-Friendly dan Kaya Fitur Ekstra
Hampir setahun berlalu sejak kedatangan seri MSI MPOWER yang pertamakalinya (Z77 MPOWER, yang pernah kami review disini), kini MSI merilis seri MPOWER mereka yang ditujukan untuk chipset Z87. MSI sendiri membuat 2(dua) buah motherboard MPOWER untuk chipset Z87, yakni MSI Z87 MPOWER, dan MSI Z87 MPOWER MAX. Yang datang ke lab Jagat Review adalah: MSI Z87 MPOWER MAX.
Seperti yang kita ketahui, seri MPOWER dari MSI dibuat dengan tujuan untuk memenuhi kebutuhan para overclocker yang ingin memaksa performa sistemnya hingga maksimal, atau sekedar memberikan durabilitas lebih bagi pengguna yang membutuhkannya. MSI MPOWER juga merupakan motherboard yang diberi sertifikasi OC oleh MSI, sehingga ini berarti secara tidak langsung MSI menggaransi motherboard ini untuk dioverclock! (Bahkan, dari informasi yang kami terima, MSI Indonesia memberikan garansi penggantian bagi semua unit motherboard MPOWER yang rusak karena terbakar)
Dapatkah MSI Z87 MPOWER MAX melanjutkan kesuksesan pendahulunya? Mari simak bersama!

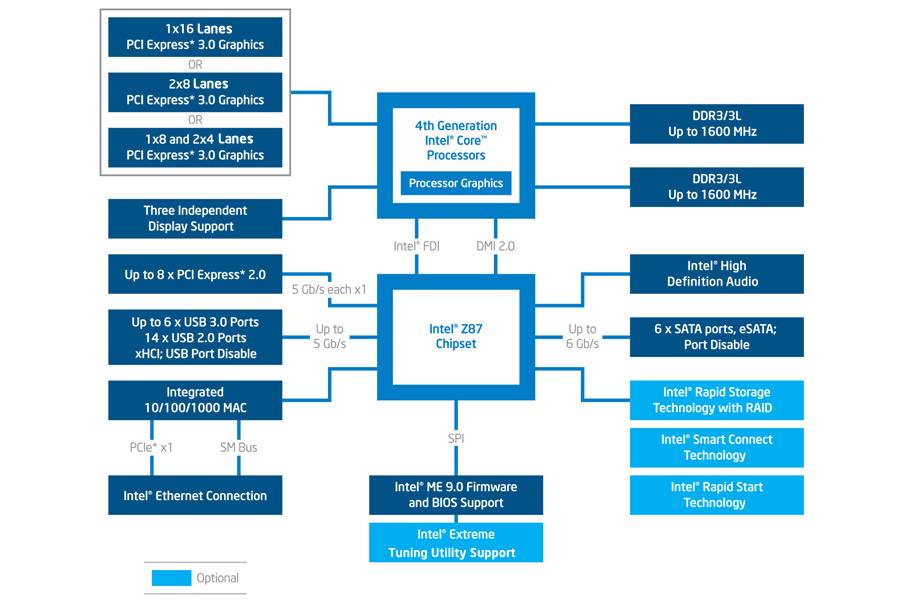

Intel Z87 Chipset Diagram
Spesifikasi
CPU
• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® /Celeron® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® Z87 Express Chipset
Main Memory
• Support four DDR3 DIMMs 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*(OC) DRAM, 32GB Max
– Supports Dual-Channel mode
– Supports non-ECC, un-buffered memory
– Supports Intel® Extreme Memory Profile (XMP)
Slots
• 3 x PCIe 3.0 x16 slots (support x16, x8/x8, x8/x4/x4 modes)
• 4 x PCIe 2.0 x1 slots
On-Board SATA
• SATAIII controller integrated in Intel® Z87 chipset
– Up to 6Gb/s transfer speed.
– 1 x mSATA 6Gb/s port*
– Supports six SATA ports (SATA1~6) by Z87
• SATAIII controller integrated in ASMedia® ASM1061 chipset
– Up to 6Gb/s transfer speed.
– Supports two SATA ports (SATA7~8) by ASM1061
*The SATA5 port will be unavailable when a SSD installed in the mSATA port.
** Supports Intel Core processors on Windows 7 and Windows 8.
• RAID
– SATA1~6 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1/5/10) by Intel Z87
USB
• Intel Z87 Express Chipset
– 4x USB 3.0 ports (available through the internal USB connectors)
– 6x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors**)
• ASMedia ASM1074 Chipset
– 4 x USB 3.0 ports on the back panel
• Renesas uPD720202 Chipset
– 2 x USB 3.0 ports on the back panel
* internal JUSB1 connector supports MSI Super Charger
Audio
• Realtek® ALC1150 Codec
– 7.1-Channel High Definition Audio
– Supports S/PDIF output
LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Killer® E2205 Gigabit LAN controller*
*The Killer Network Manager is only available for Windows 7 and Windows 8 currently. The supported drivers for other operating systems would depend on the vendor providing or not.
Multi-GPU
• Supports 3-Way AMD CrossFireTM Technology*
• Supports 2-Way NVIDIA® SLITM Technology
• Supports Lucid Virtu MVP 2.0*
*Supports Windows 7 and Windows 8.
Internal I/O Connectors
– ATX 24-Pin power connector
– 2 x 8-pin ATX 12V power connector
– 2 x 4-pin CPU fan connectors
– 3 x 4-pin System fan connectors
– 8 x SATA 6Gb/s connectors
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports)
– 1 x Discharge jumper
– 1 x Multi BIOS Switch
– 1 x Front Panel Audio connector
– 2 x System panel connectors
– 1 x Chassis Intrusion connector
– 14 x V-Check points (7x V-Check connectors, 7x V-Check spots)- 1 x Power button
– 1 x GO2BIOS button
– 1 x OC Genie button
– 1 x Reset button
– 2 x Base Clock control buttons
– 1 x Clear CMOS jumper
– 1 x Power button
– 1 x OC Genie mode switch
– 1 x 2-Digit Debug Code LED
– 1 x Wi-Fi/ Bluetooth module connector
Back Panel I/O Ports
– 1 x PS/2 keyboard/mouse combo port
– 1 x Clear CMOS button
– 1 x Optical S/PDIF-out port
– 2 x USB 2.0 ports
– 6 x USB 3.0 ports
– 1 x RJ45 LAN jack
– 1 x 6 in 1 OFC audio jack
– 1 x DisplayPort with max. resolution up to 4096×2160@24Hz, 24bpp/ 3840×1600@60Hz, 24bpp
– 2 x HDMI ports with max. resolution up to 4096×2160@24Hz, 24bpp/2560×1600@60Hz, 24bpp/ 1920×1080@60Hz, 36bpp
This platform supports dual-display and triple-display function
BIOS
• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 30.4cm(L) x 24.4cm(W) ATX Form Factor
Mounting
• 9 mounting holes.
